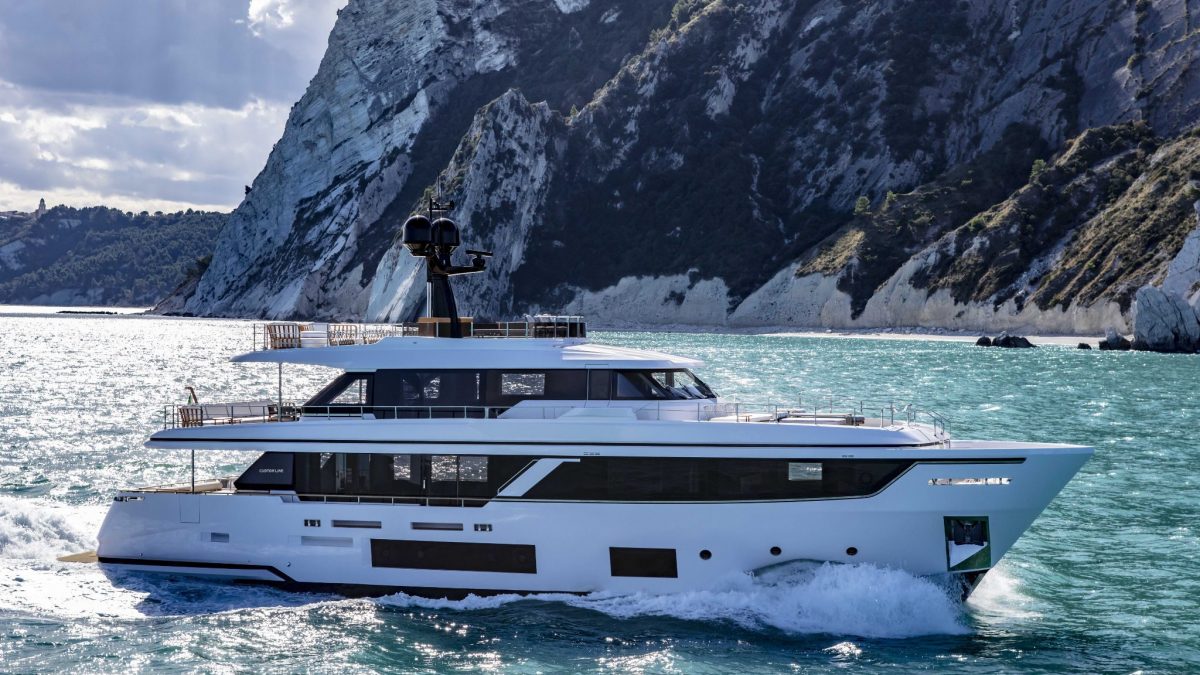

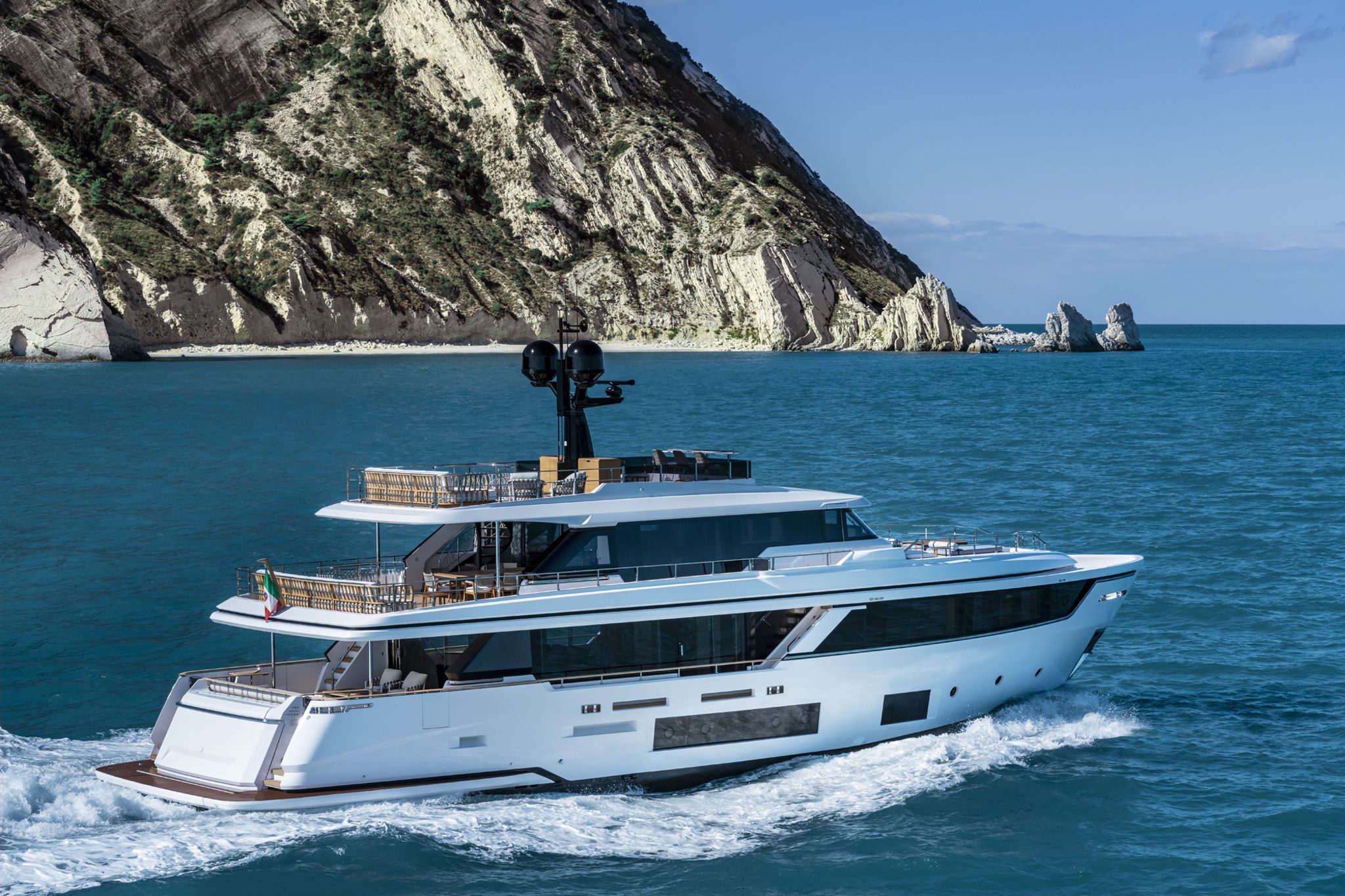

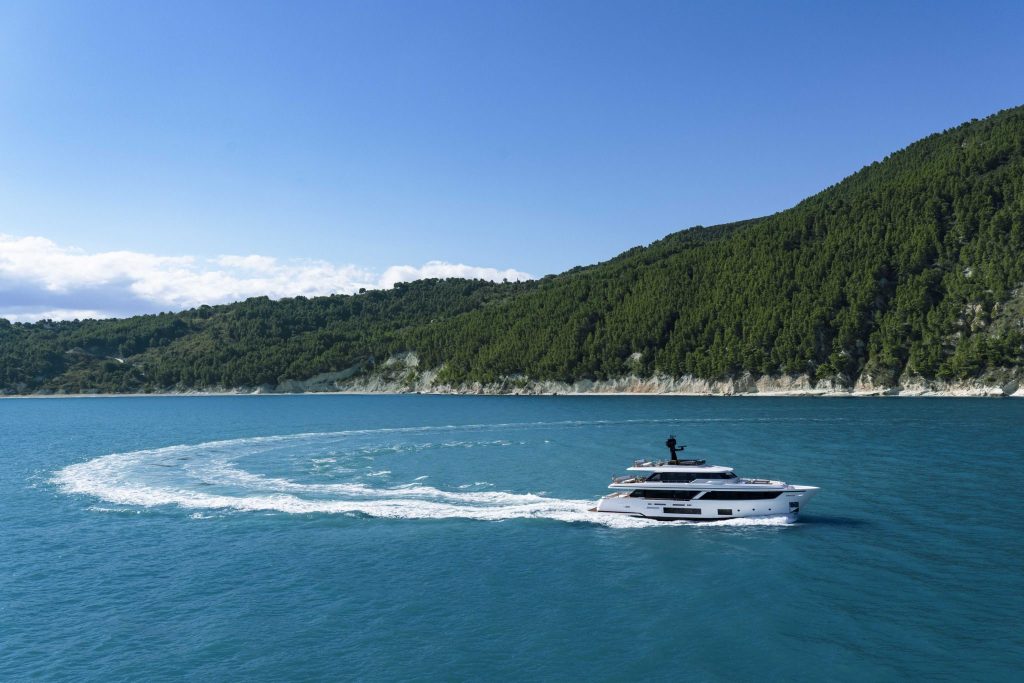

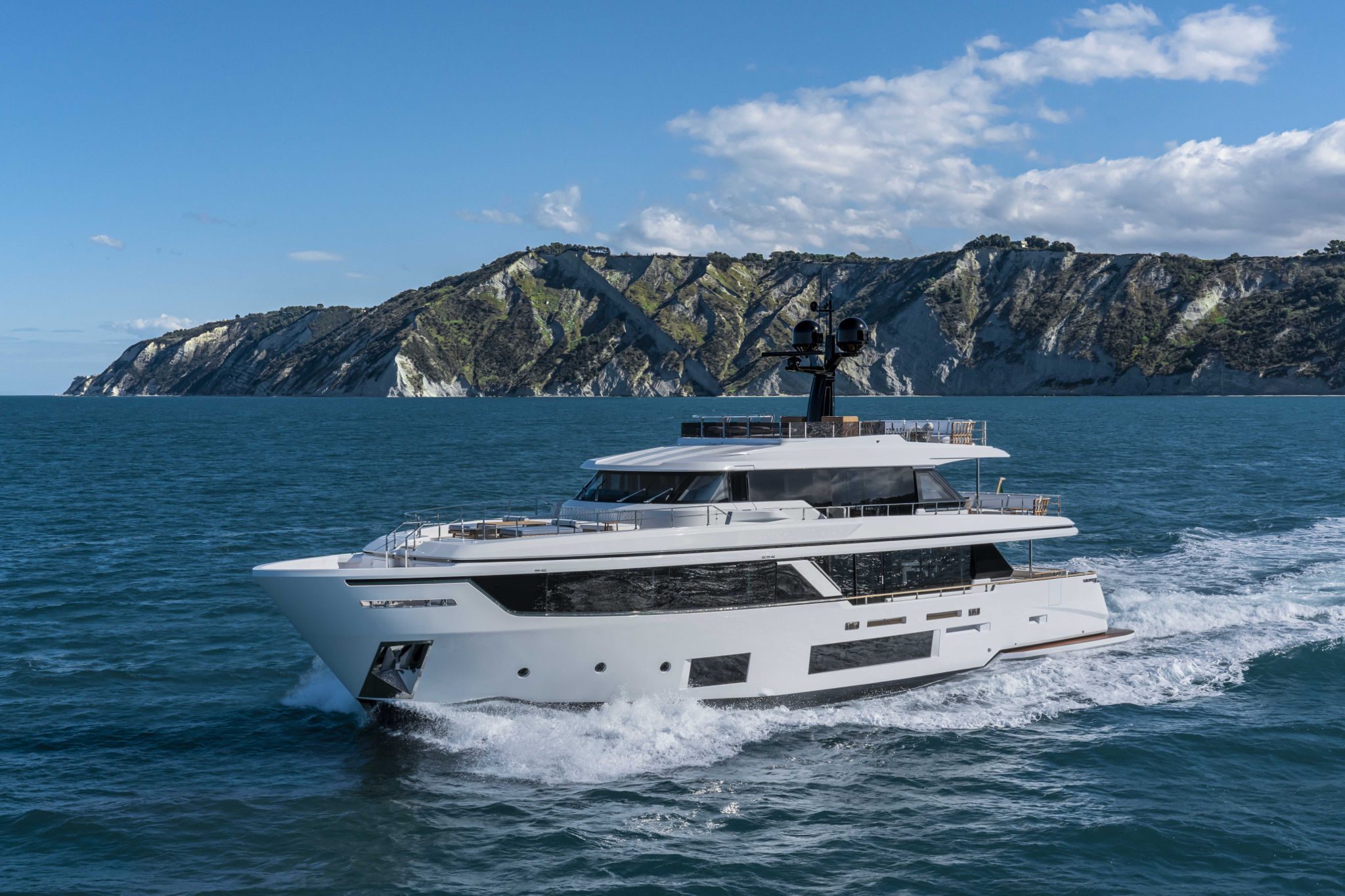

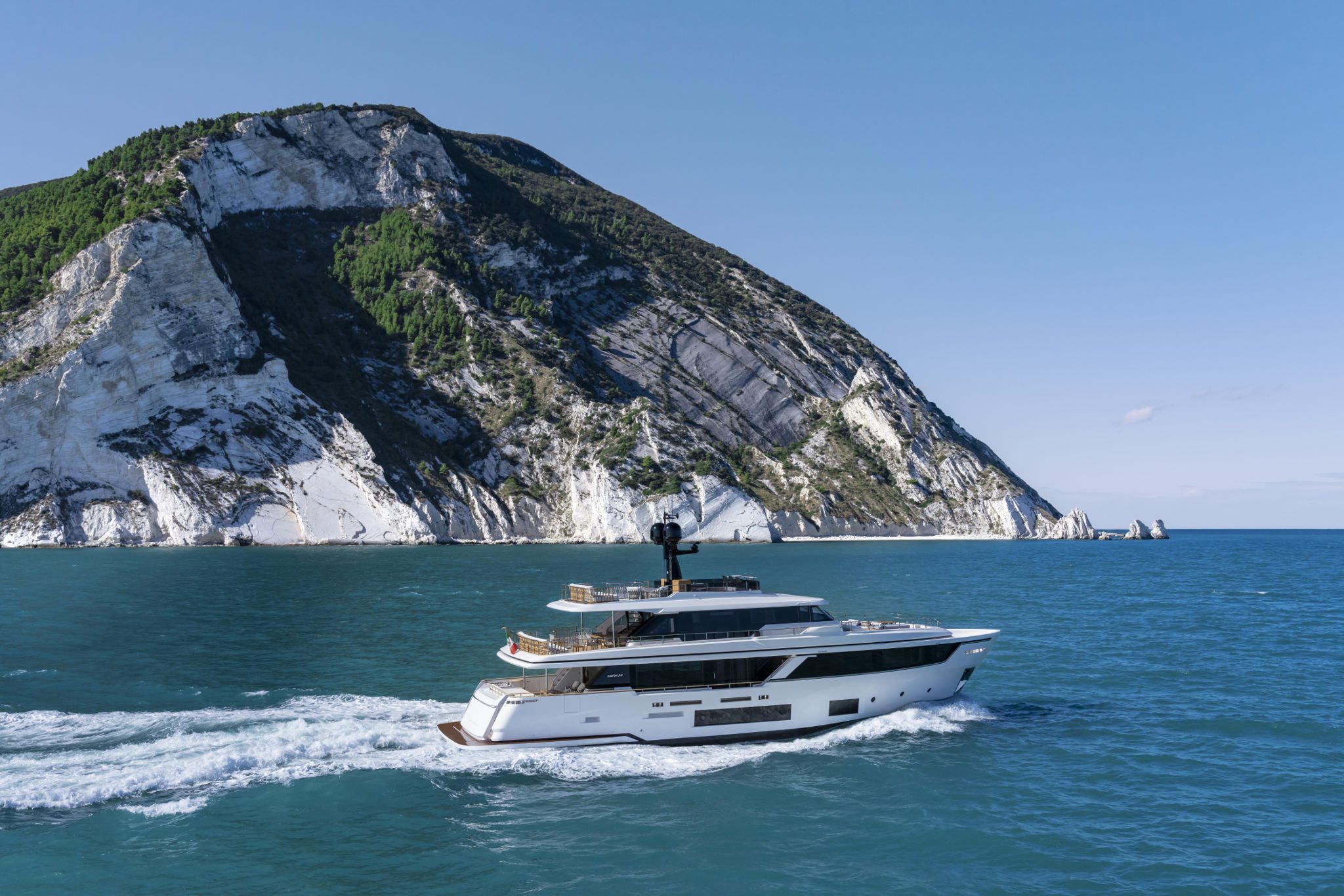

The Navetta 30 is the new superyacht in the Custom Line displacement range that marries comfort and safety with personalisation and seaworthiness. Her groundbreaking design is bristling with the explosive energy of a true masterpiece, with a paradigm that defines the state of the art on a quest for absolute wellbeing for owner and guests. At 28.43 m long and 7.3 m in the beam, the Navetta 30 is ambitious in size but rides the waves with a gossamer elegance that speaks eloquently of liberty and grace.

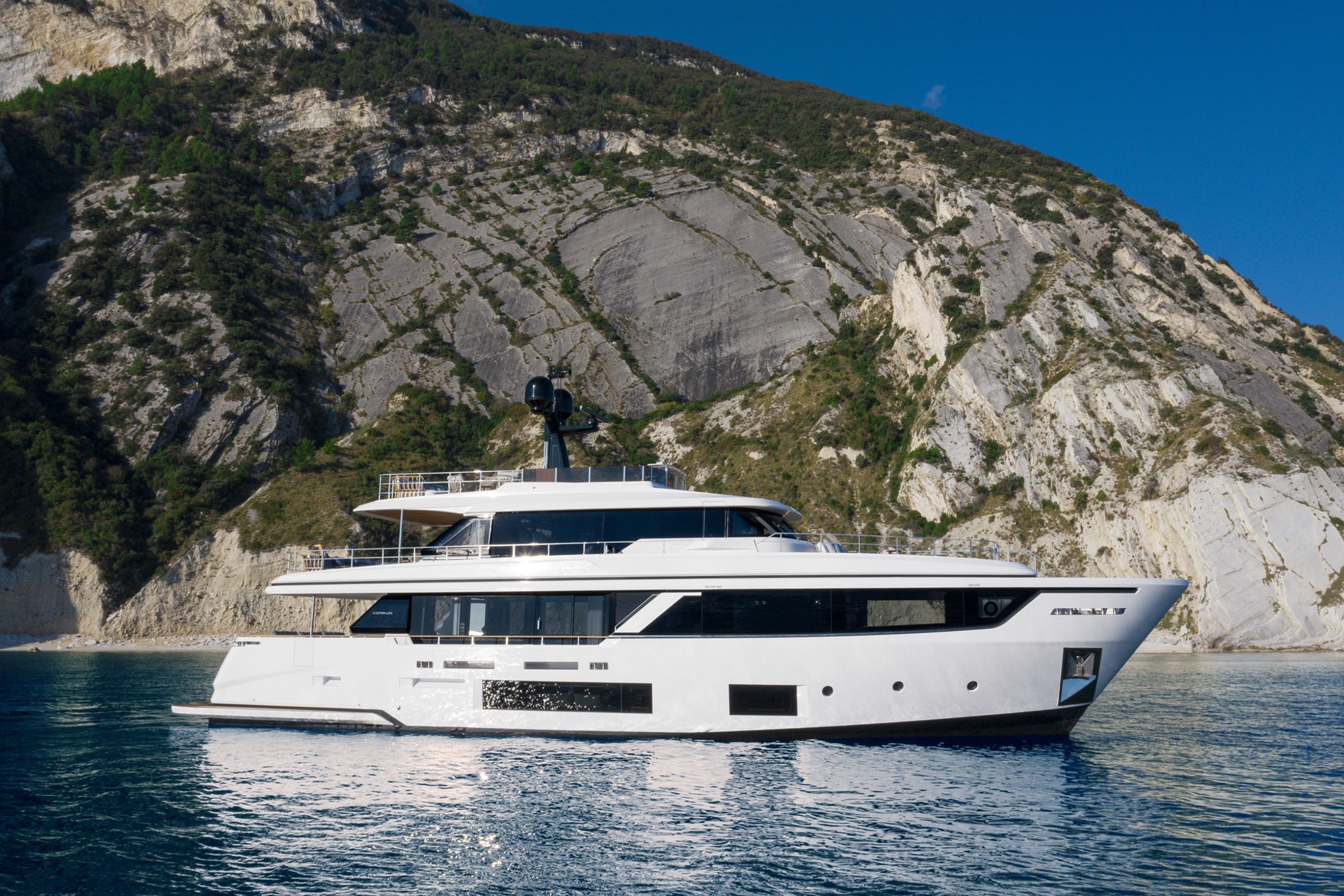

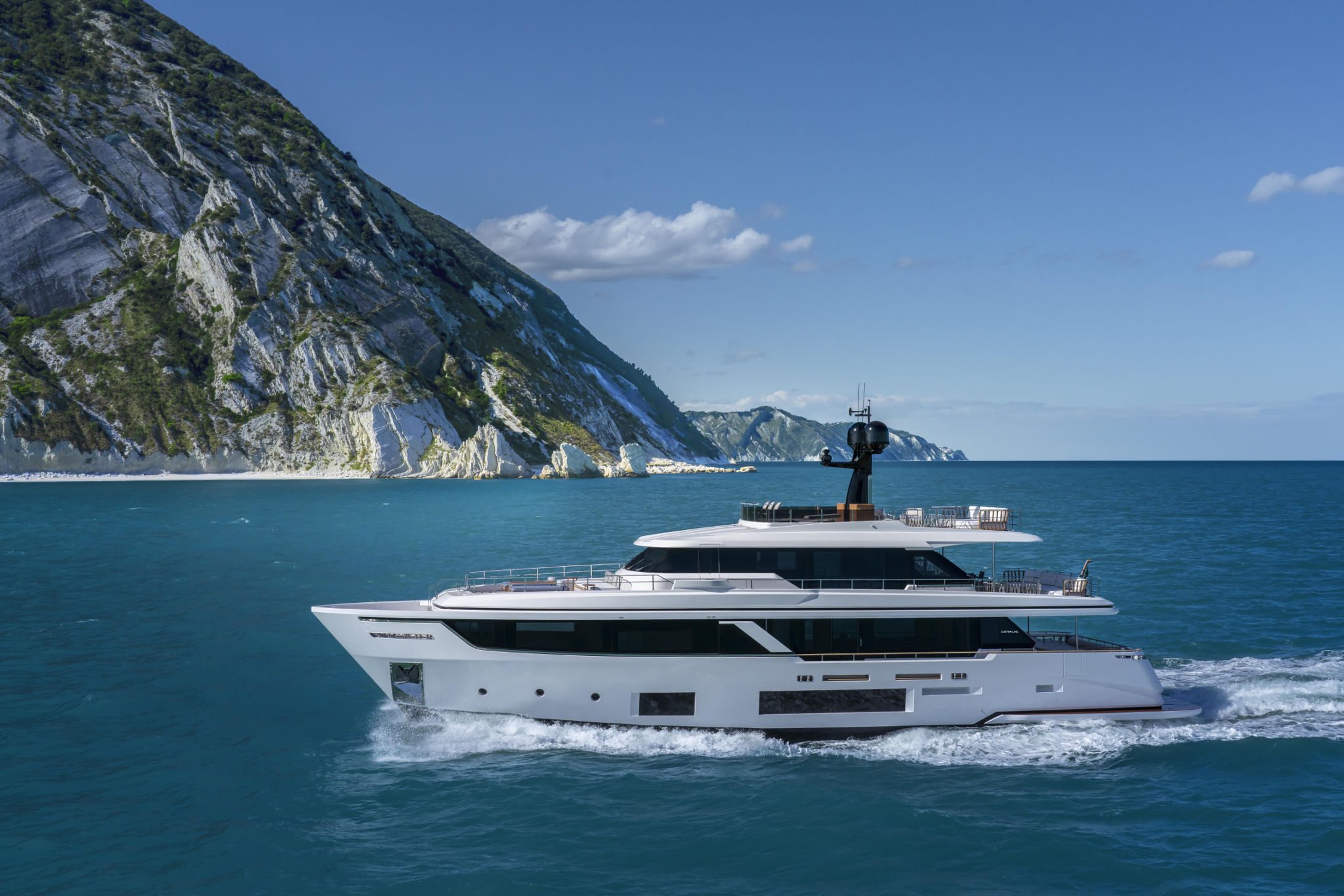

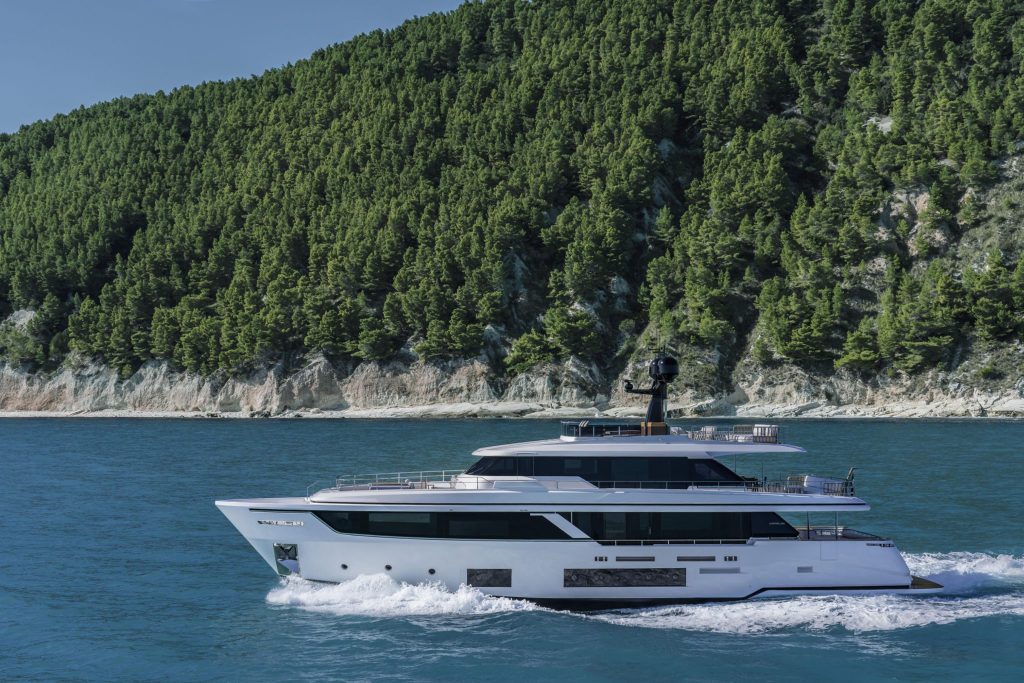

EXTERIOR
INTERIOR

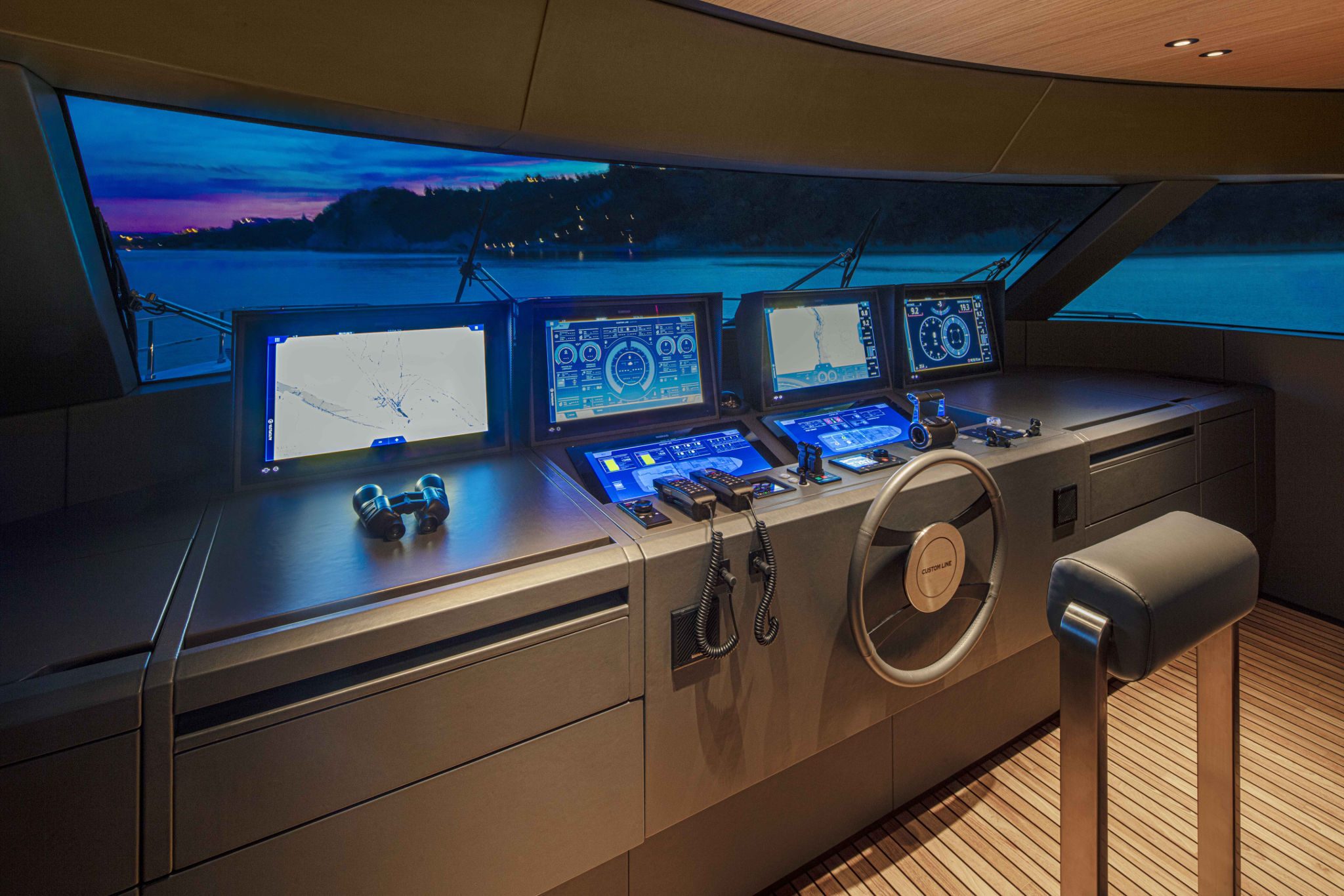

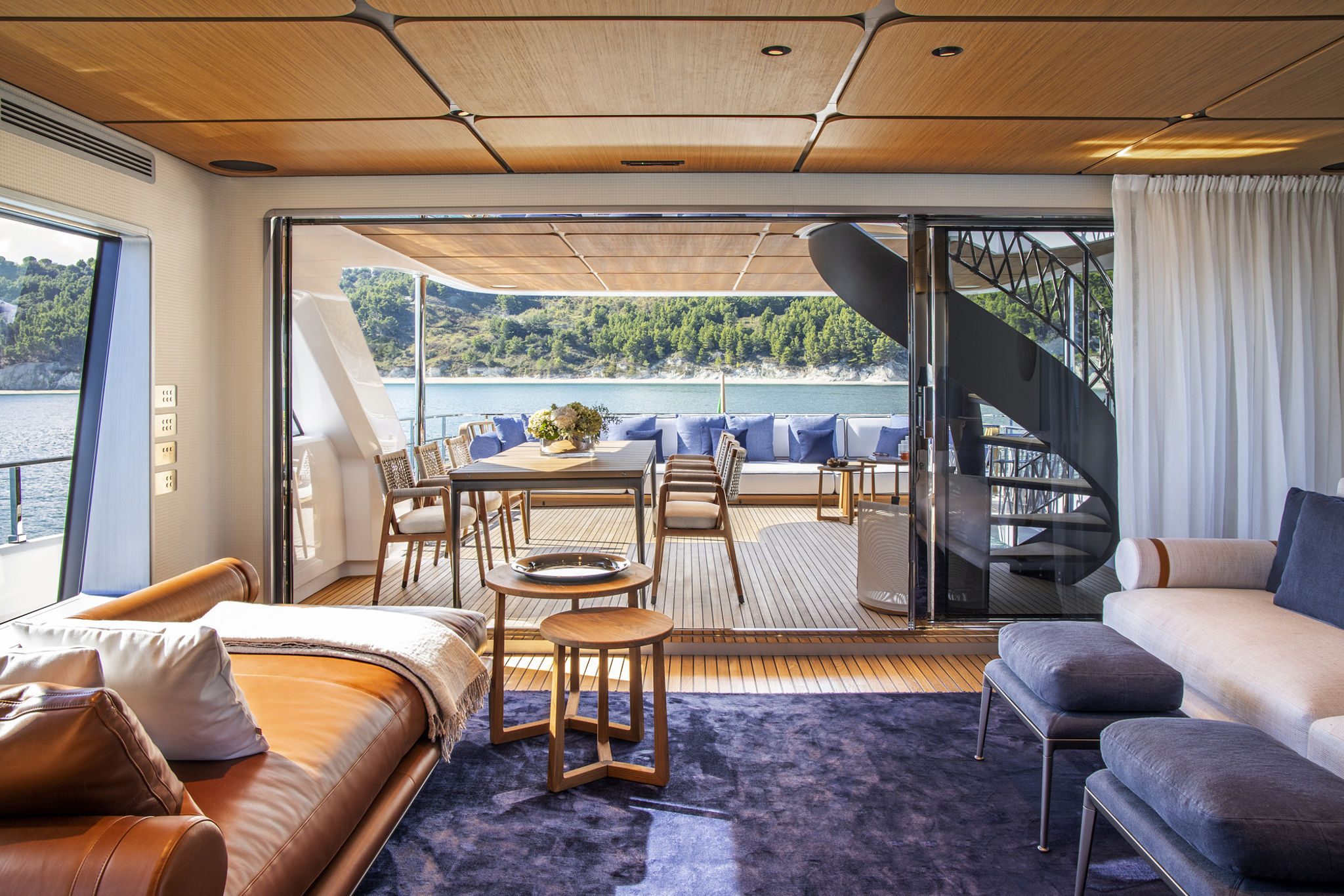

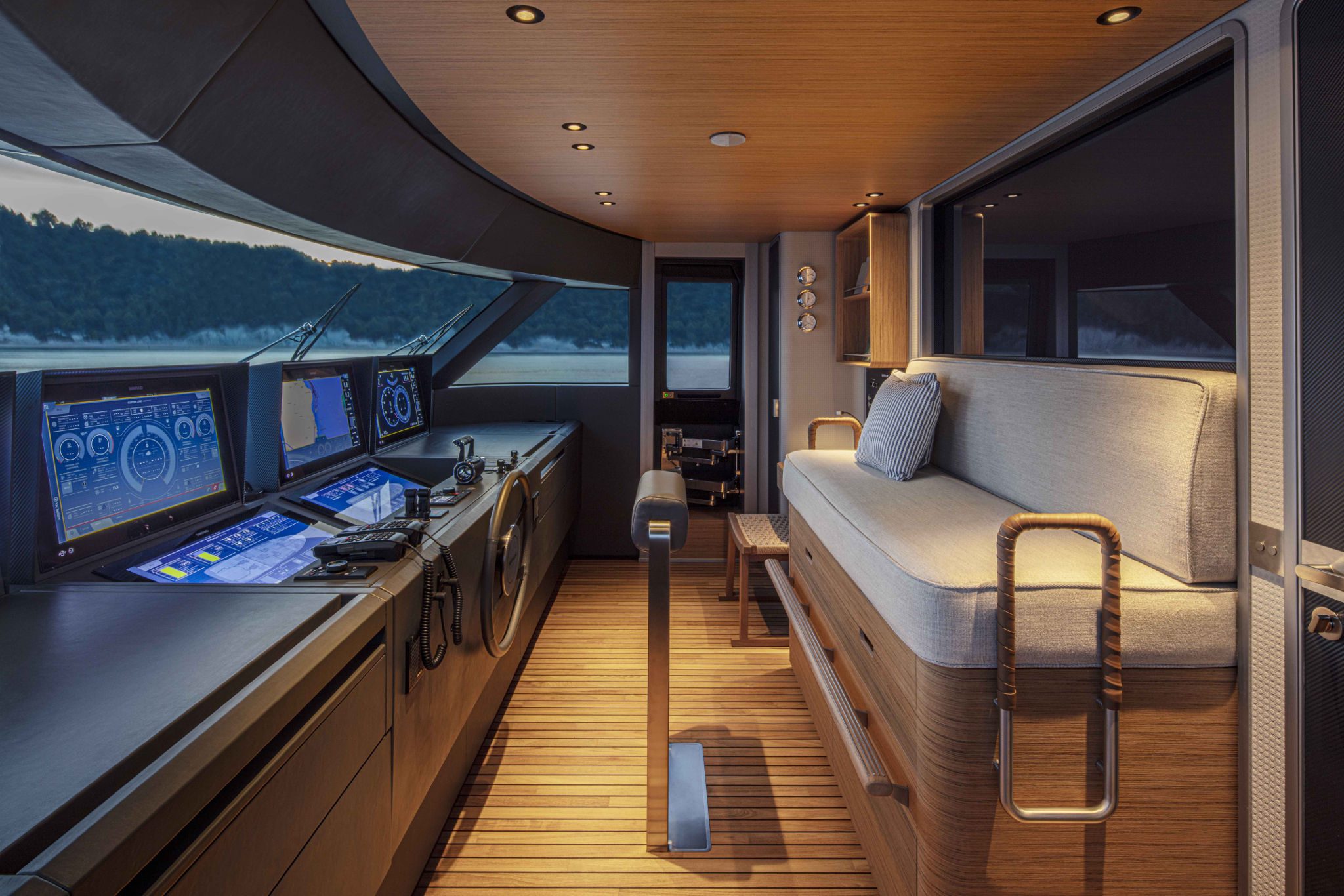

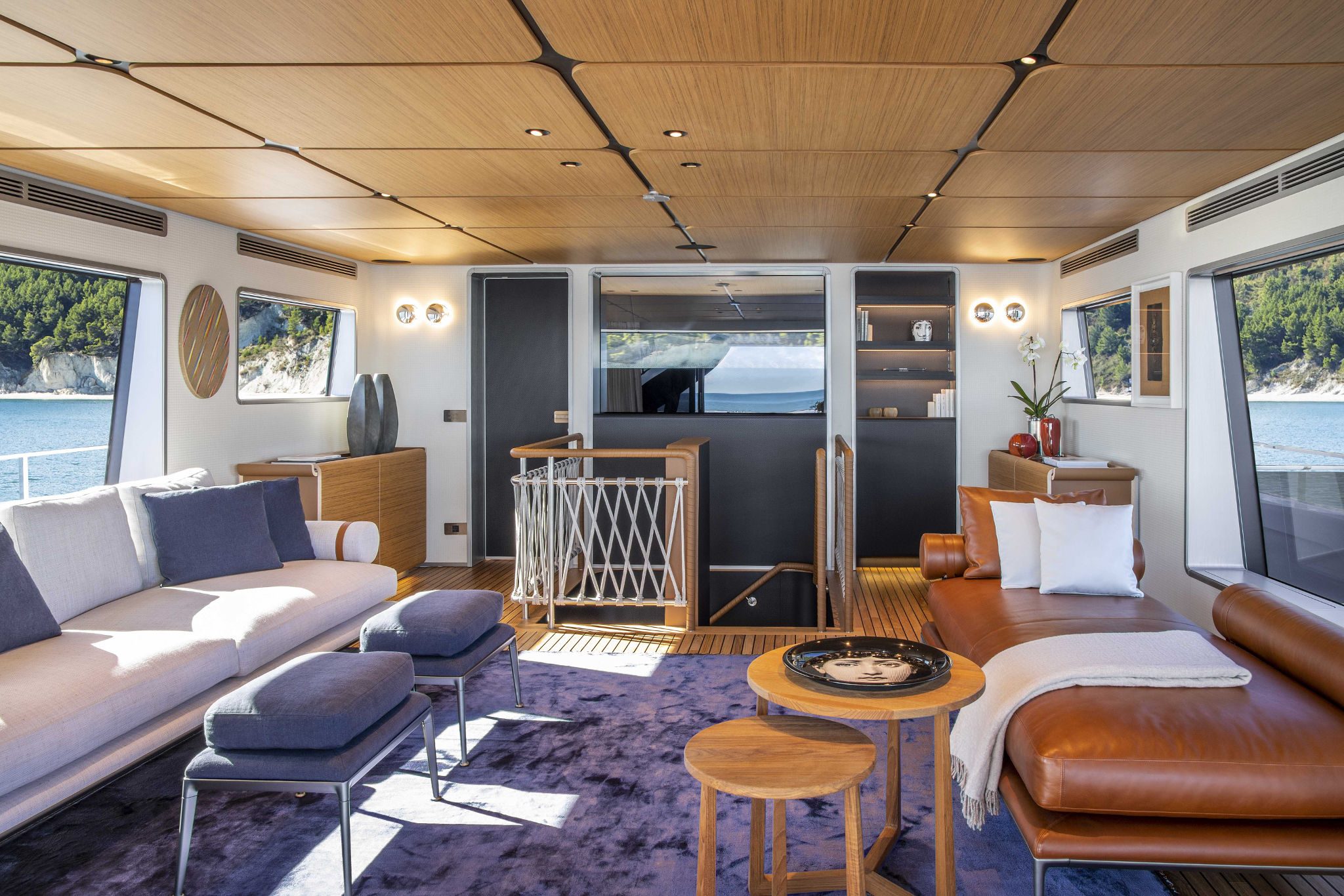

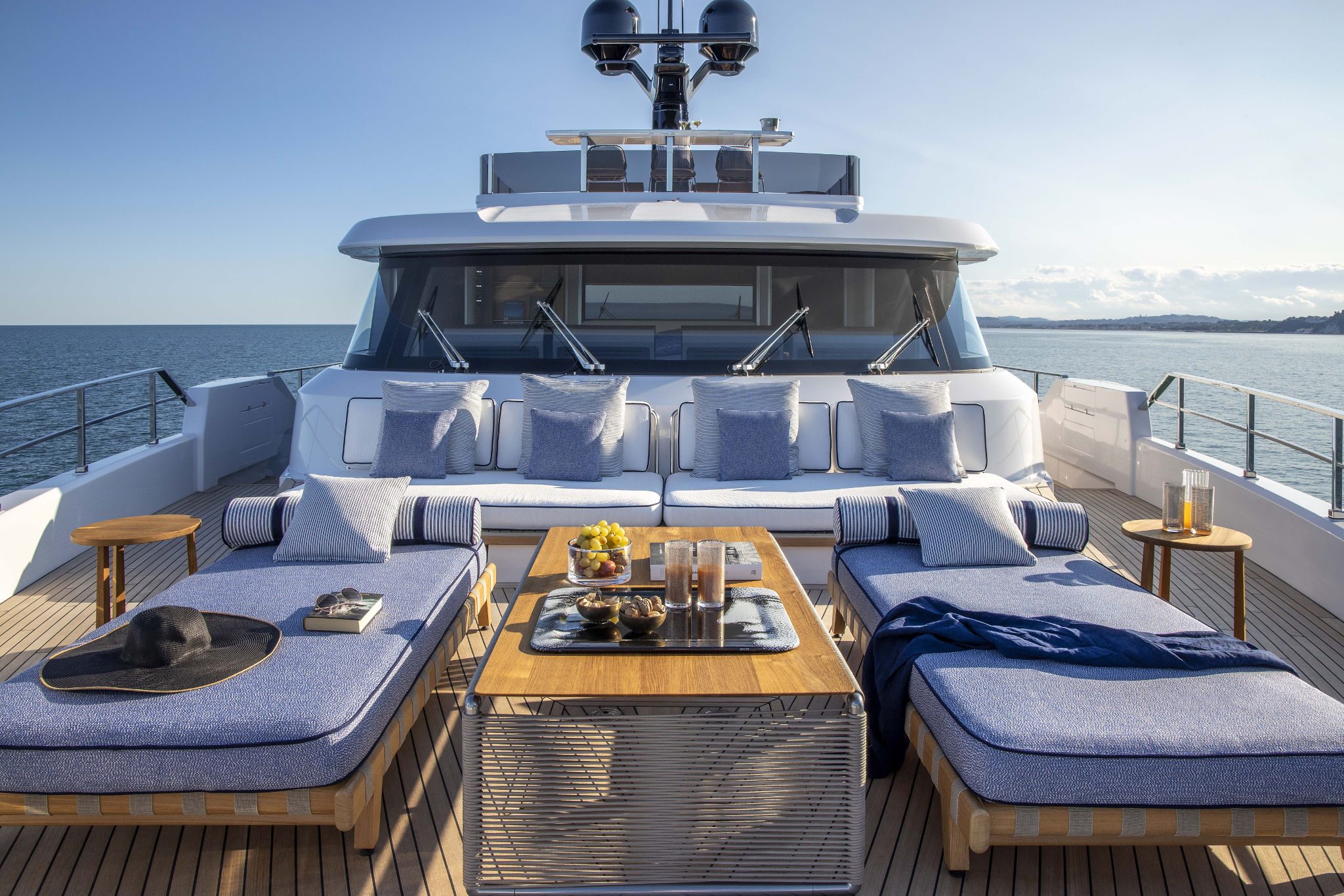

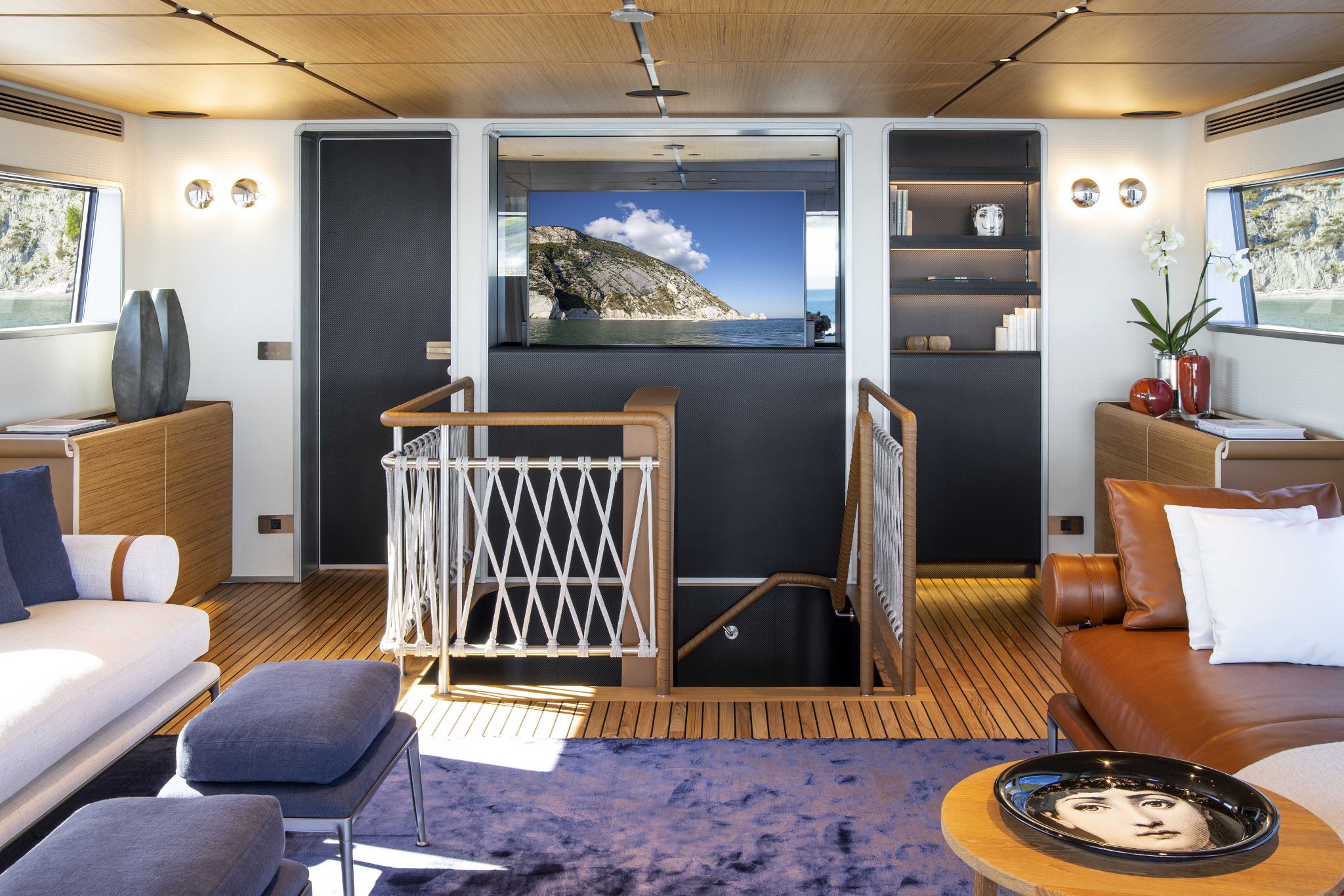

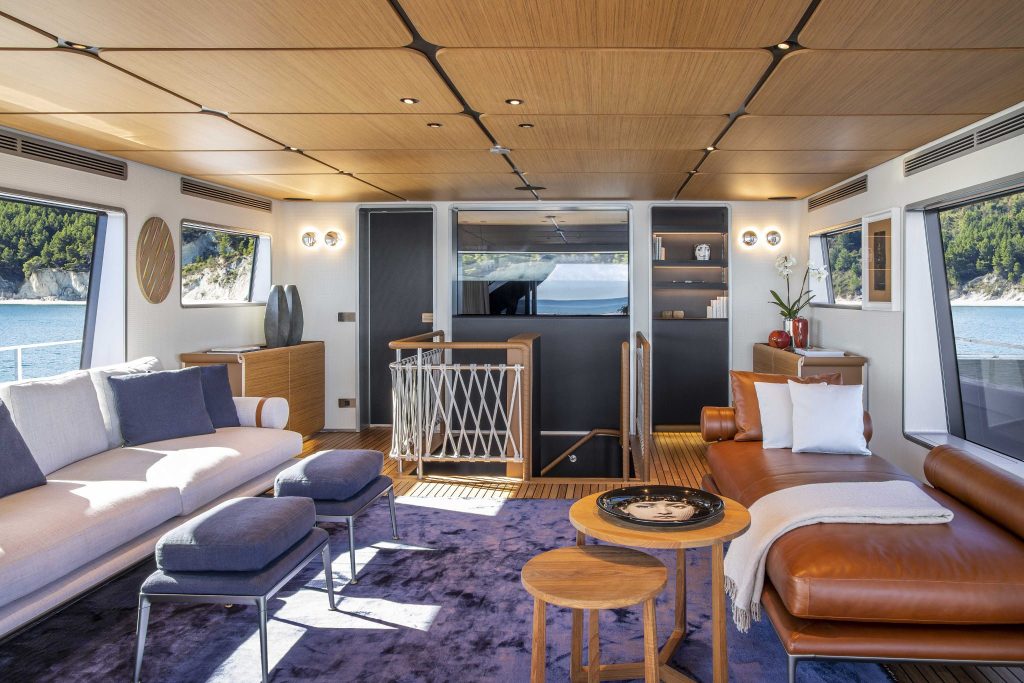

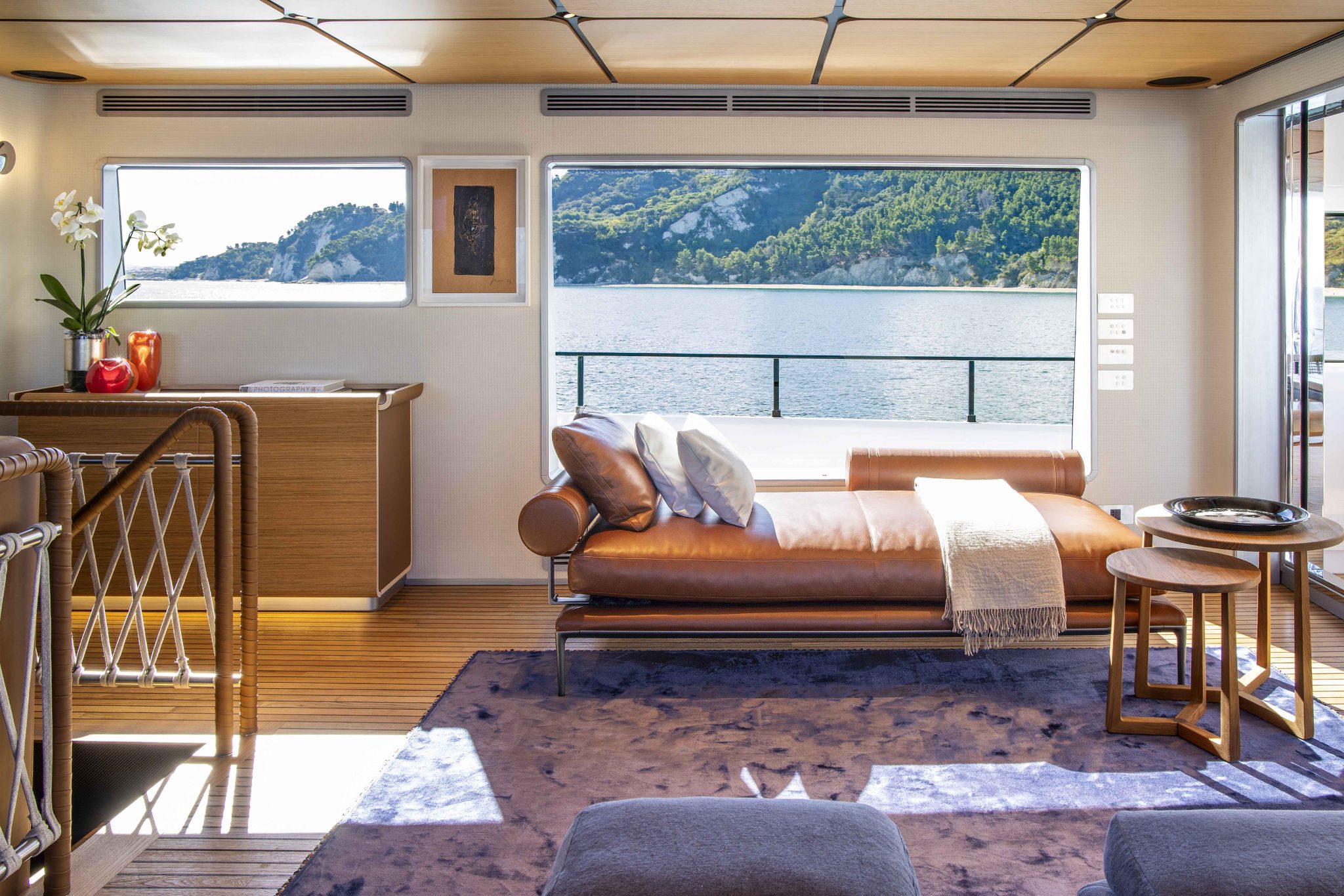

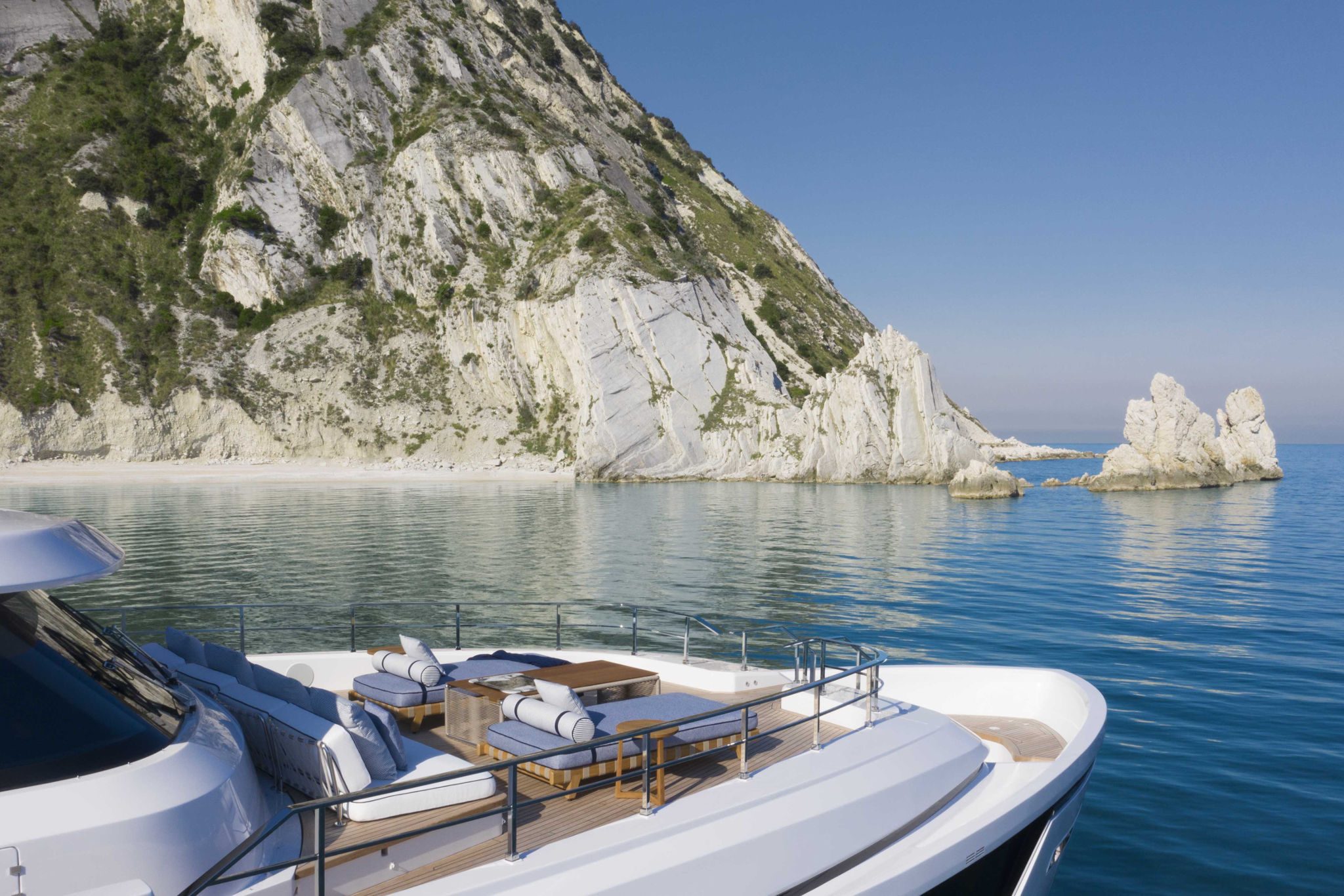

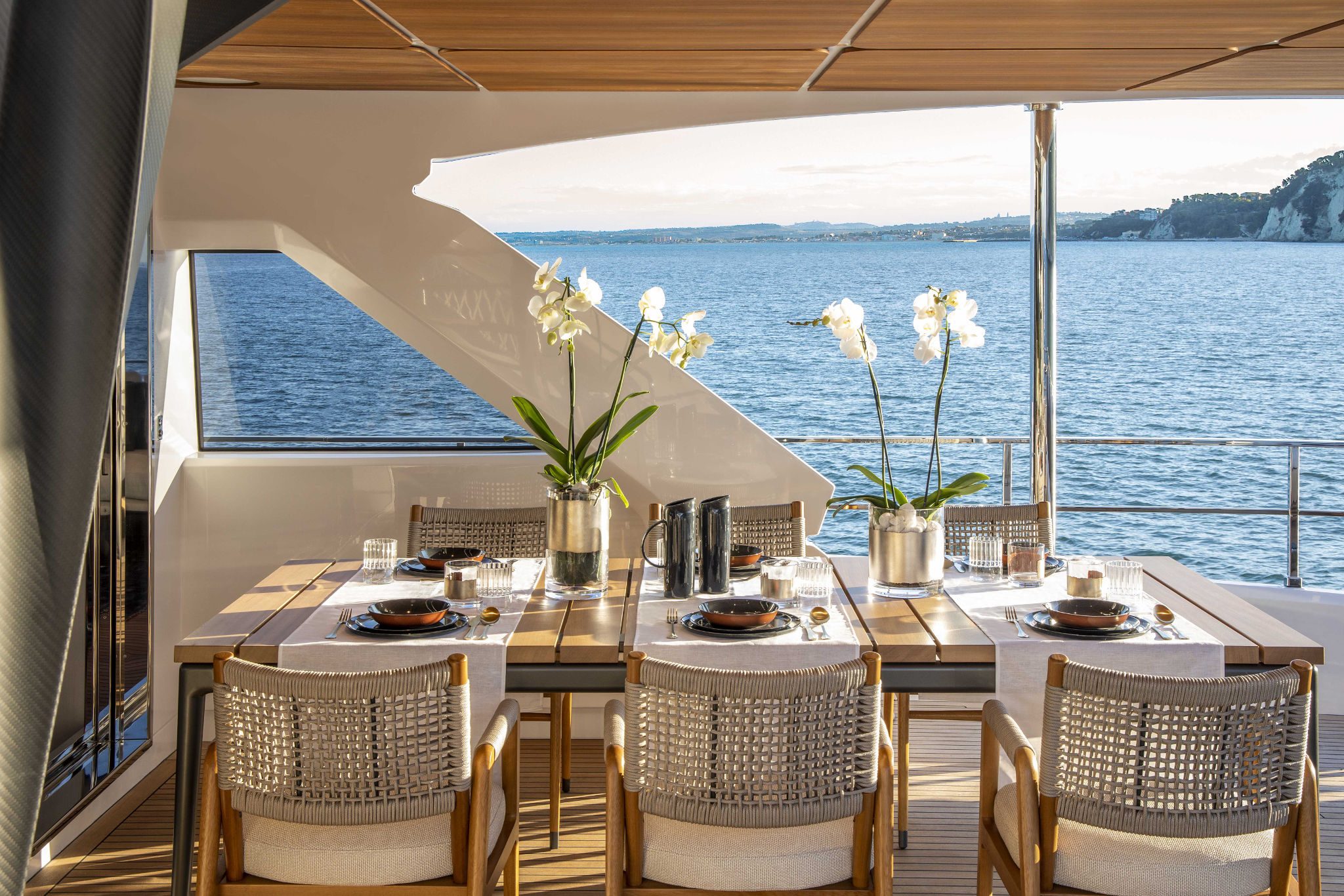

UPPER DECK
UPPER DECK

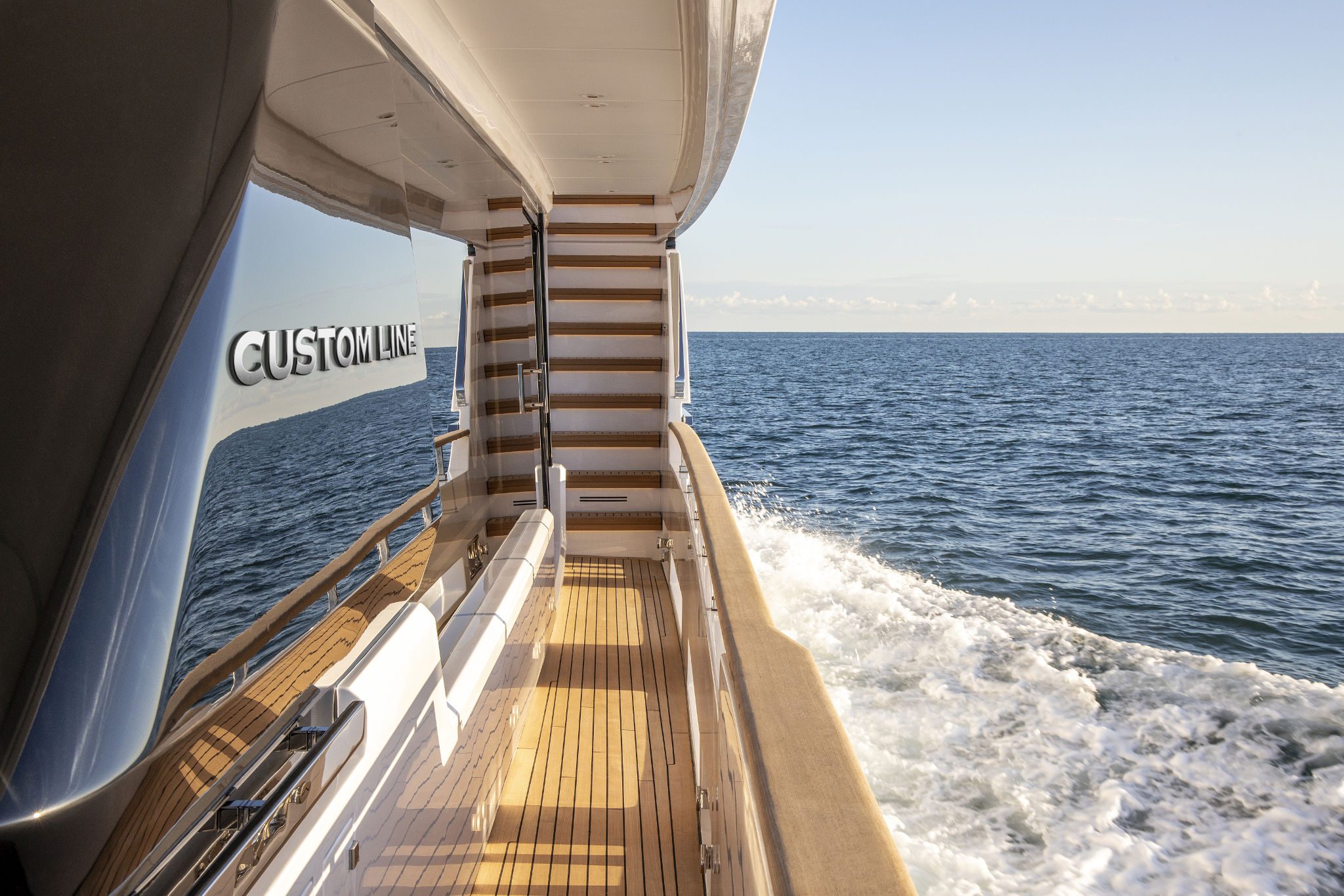

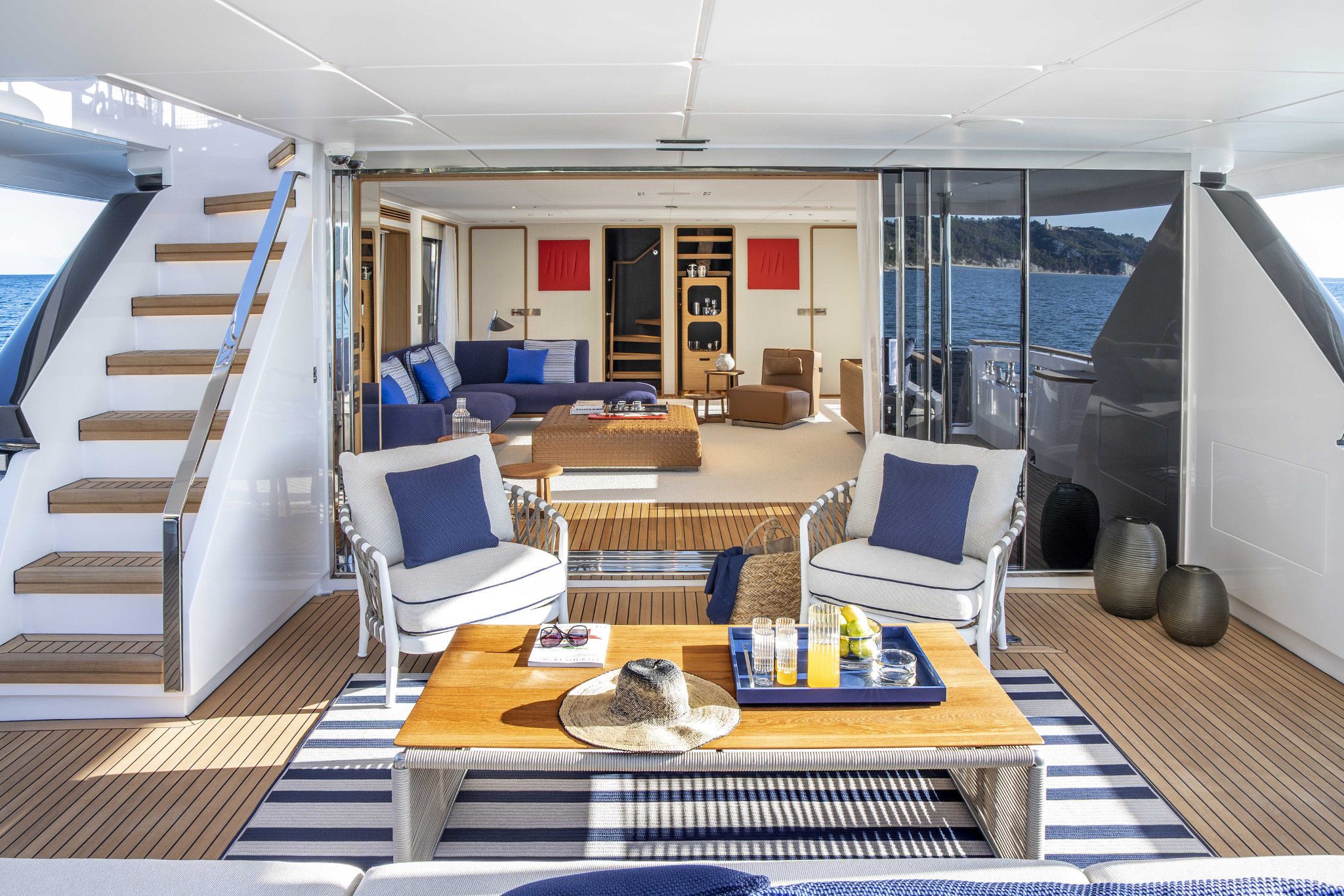

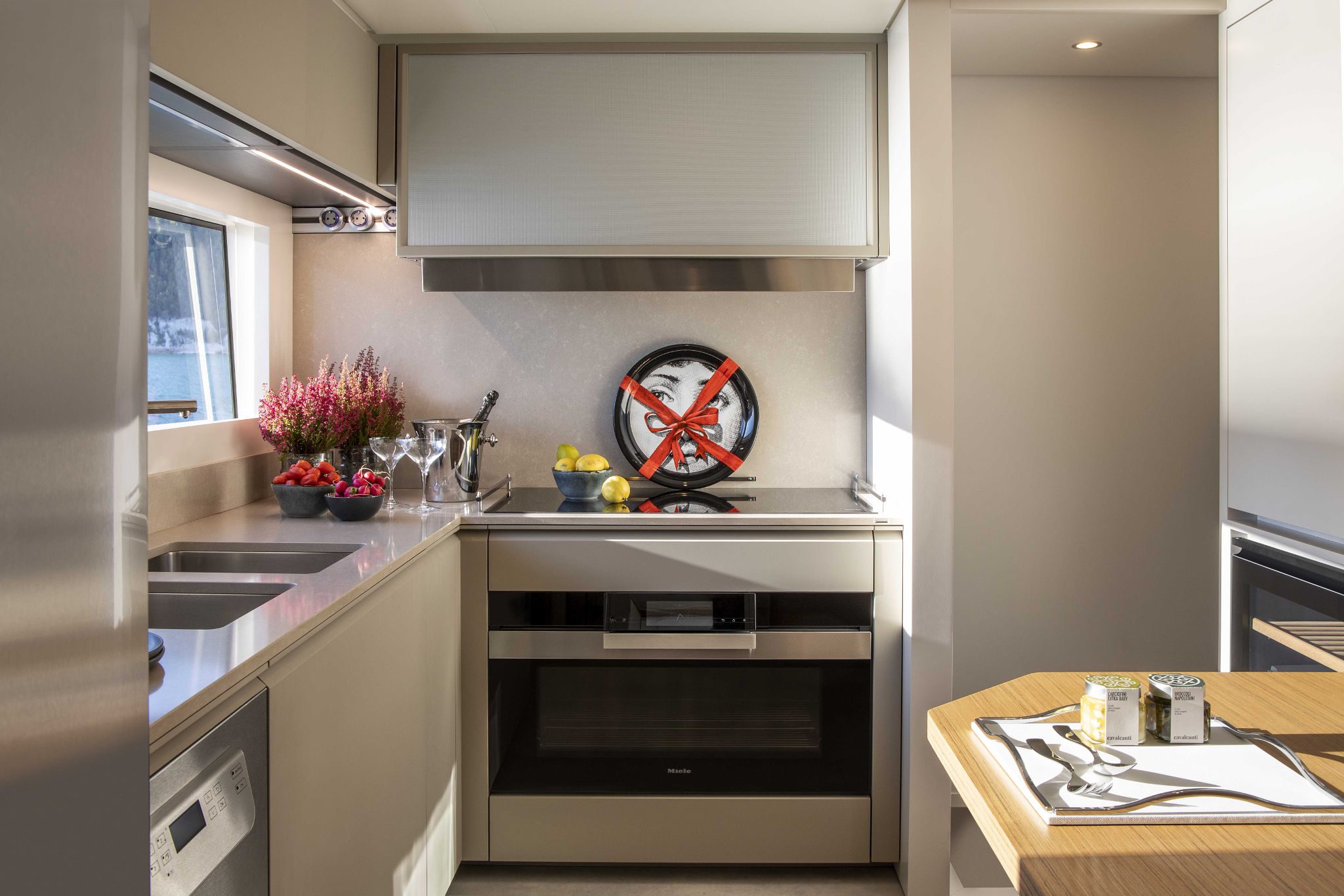

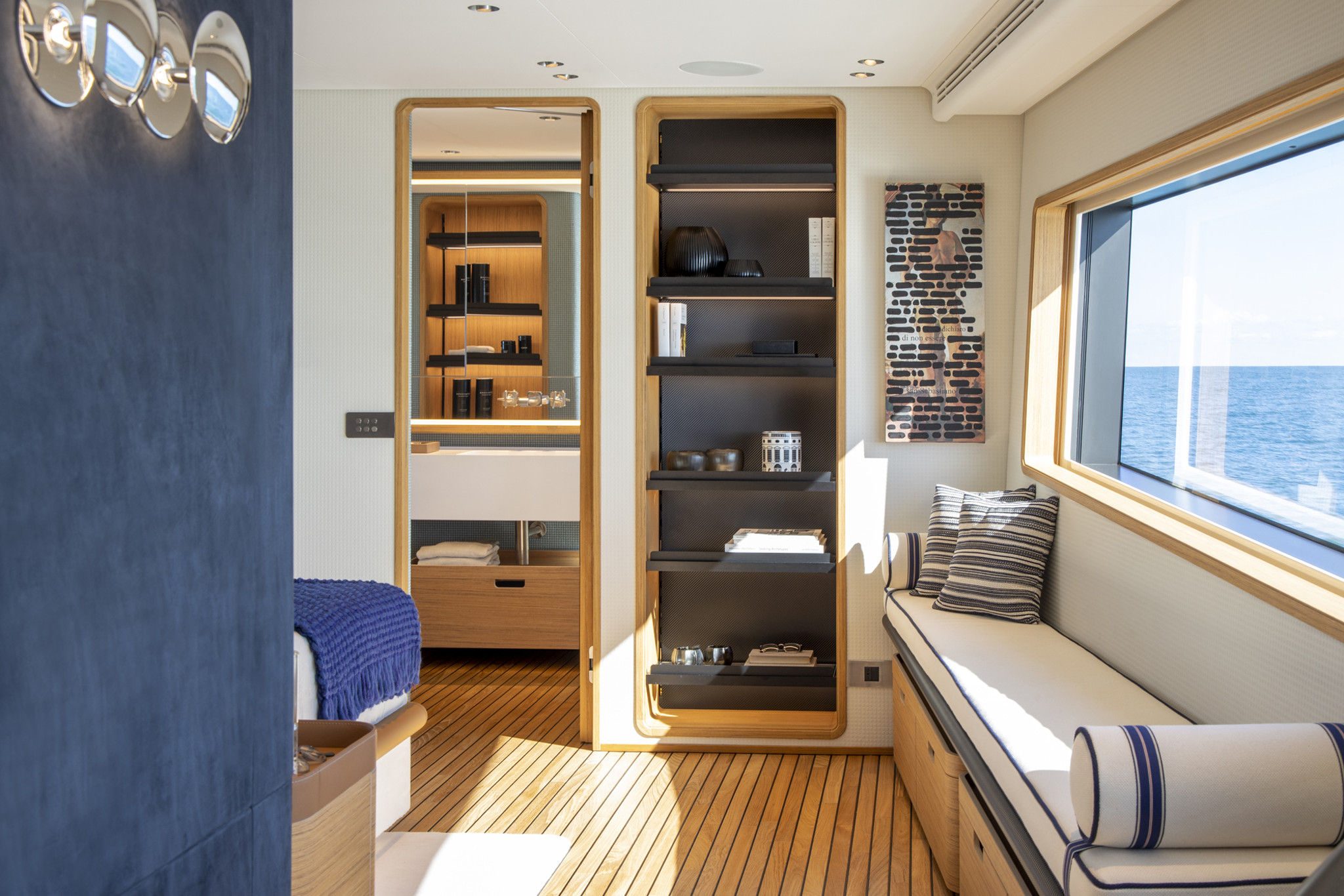

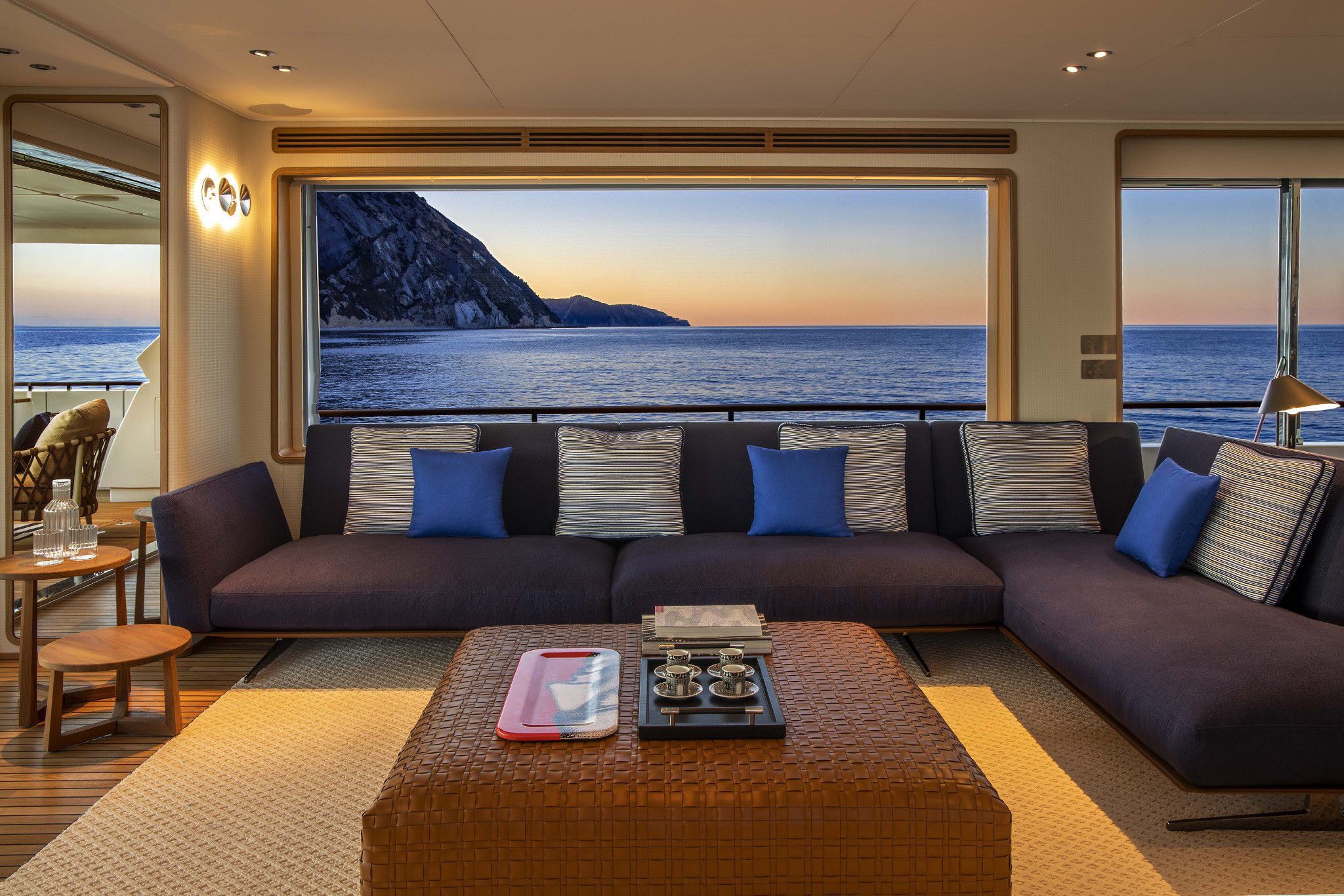

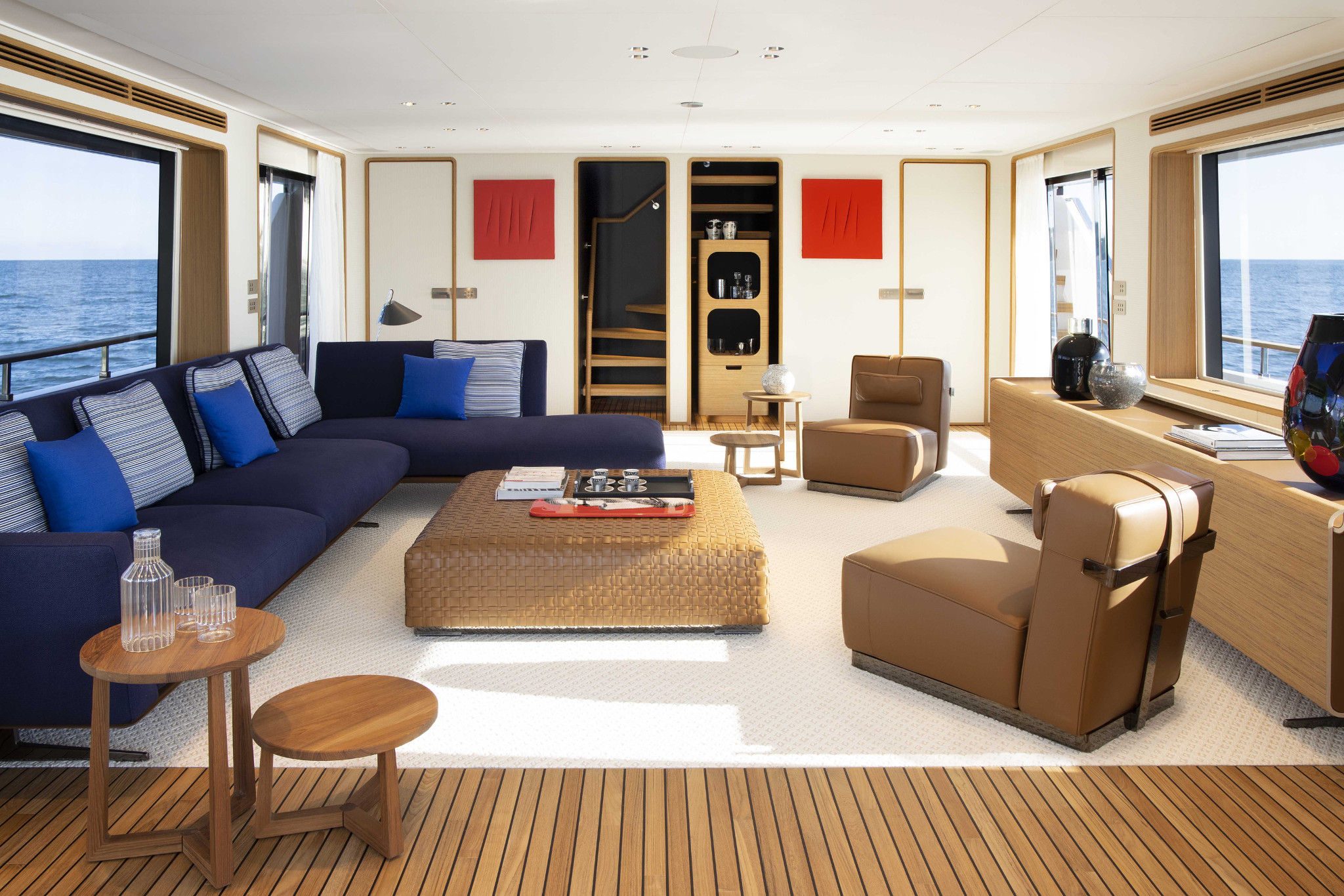

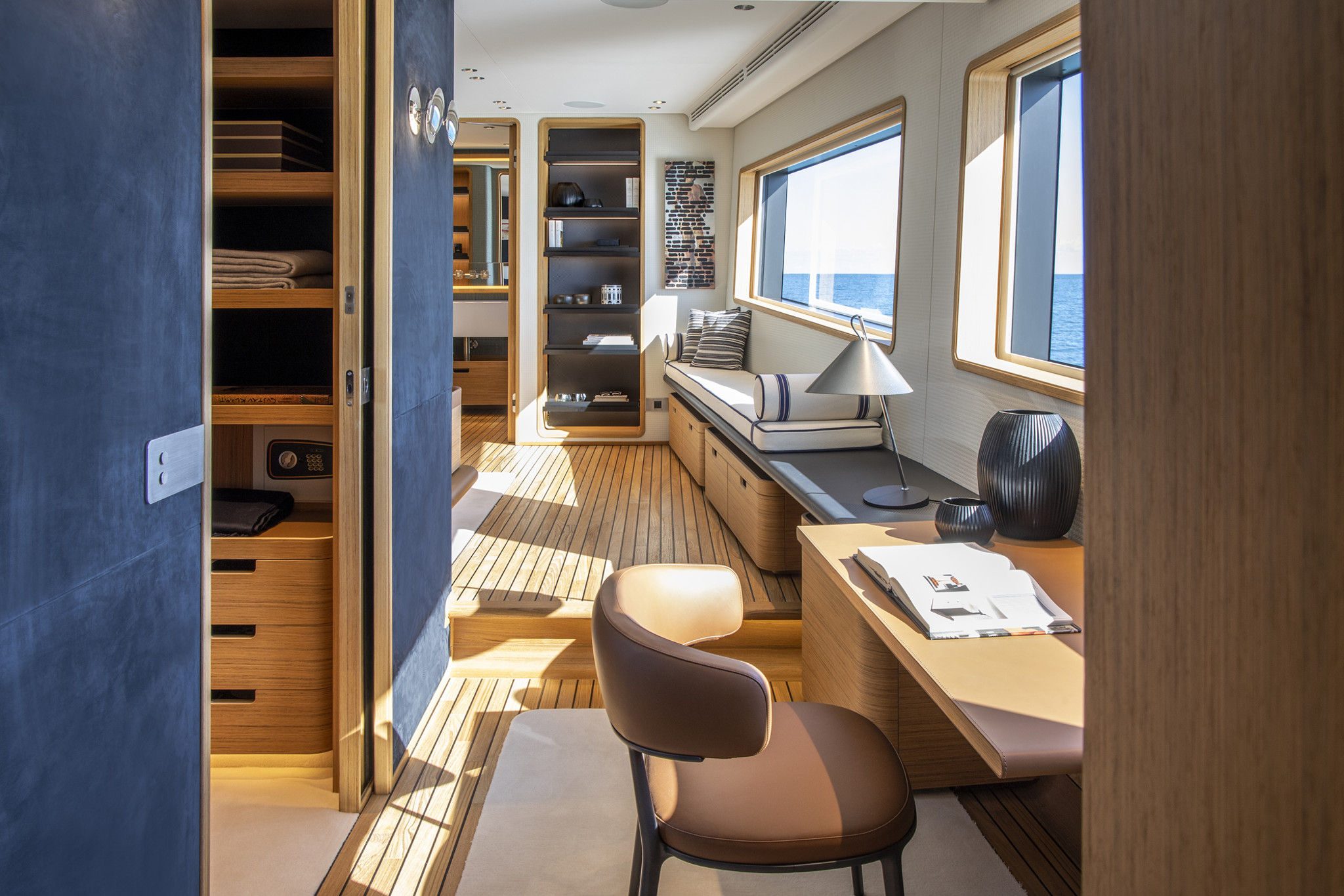

MAIN DECK
MAIN DECK
MAIN DECK B
MAIN DECK B

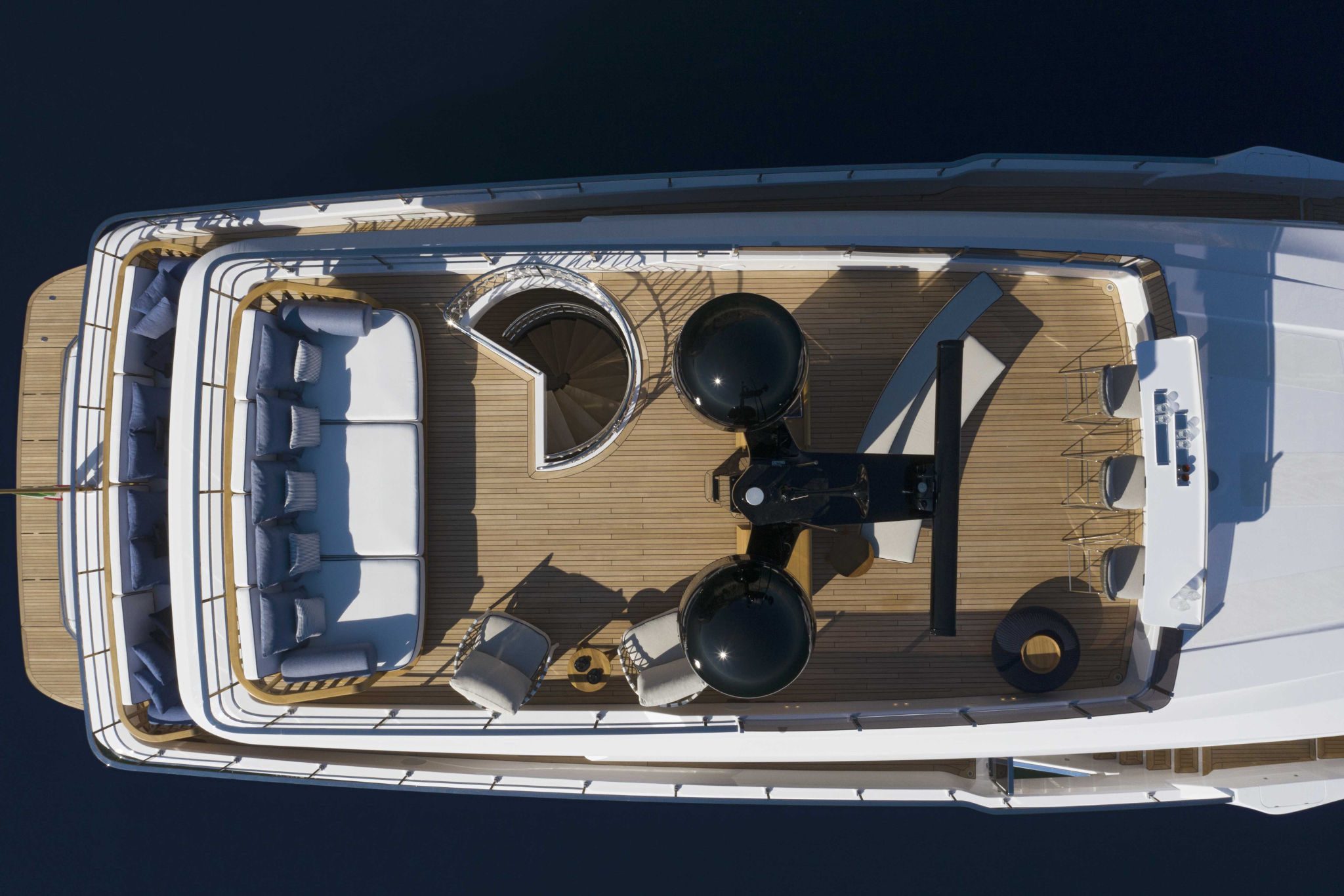

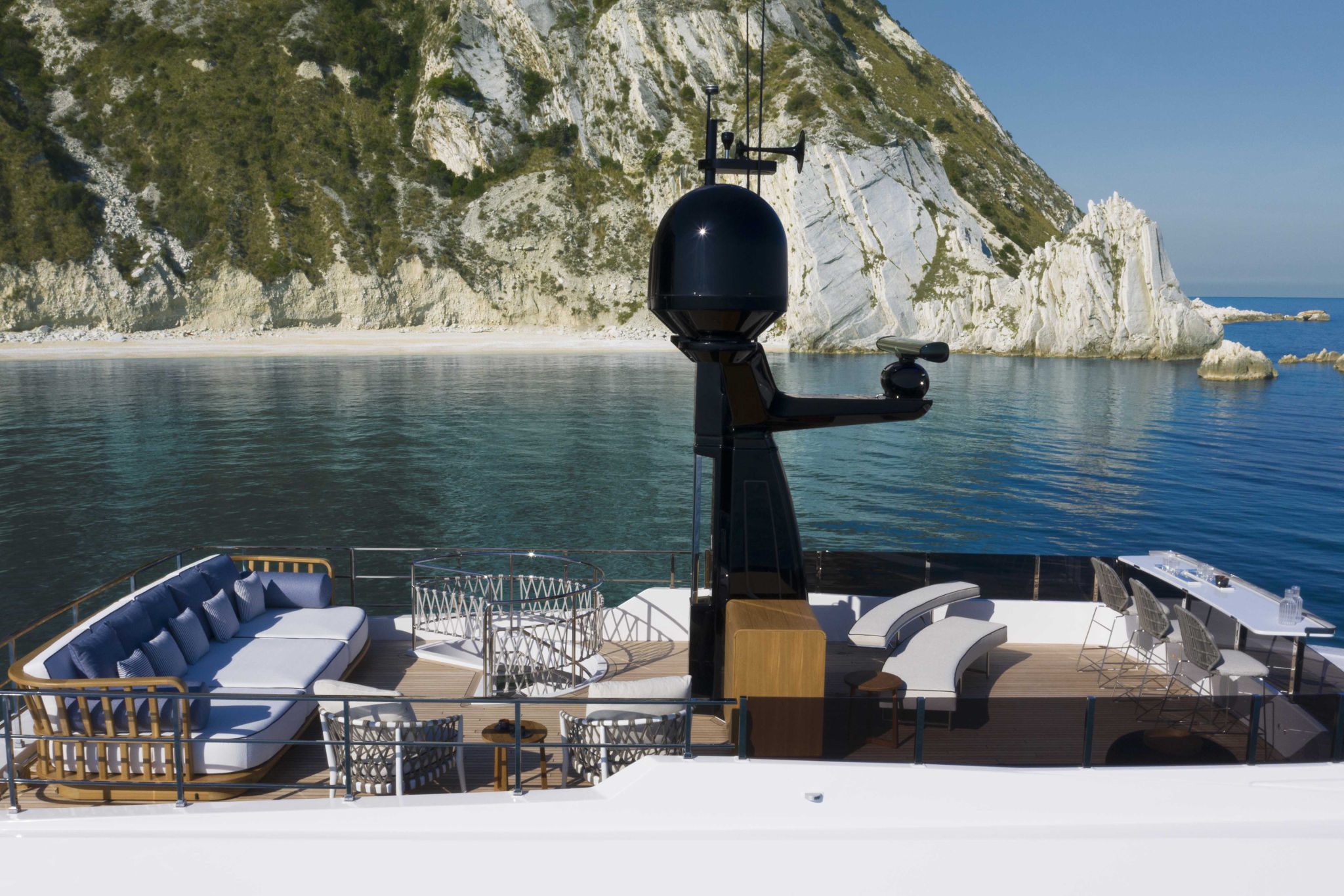

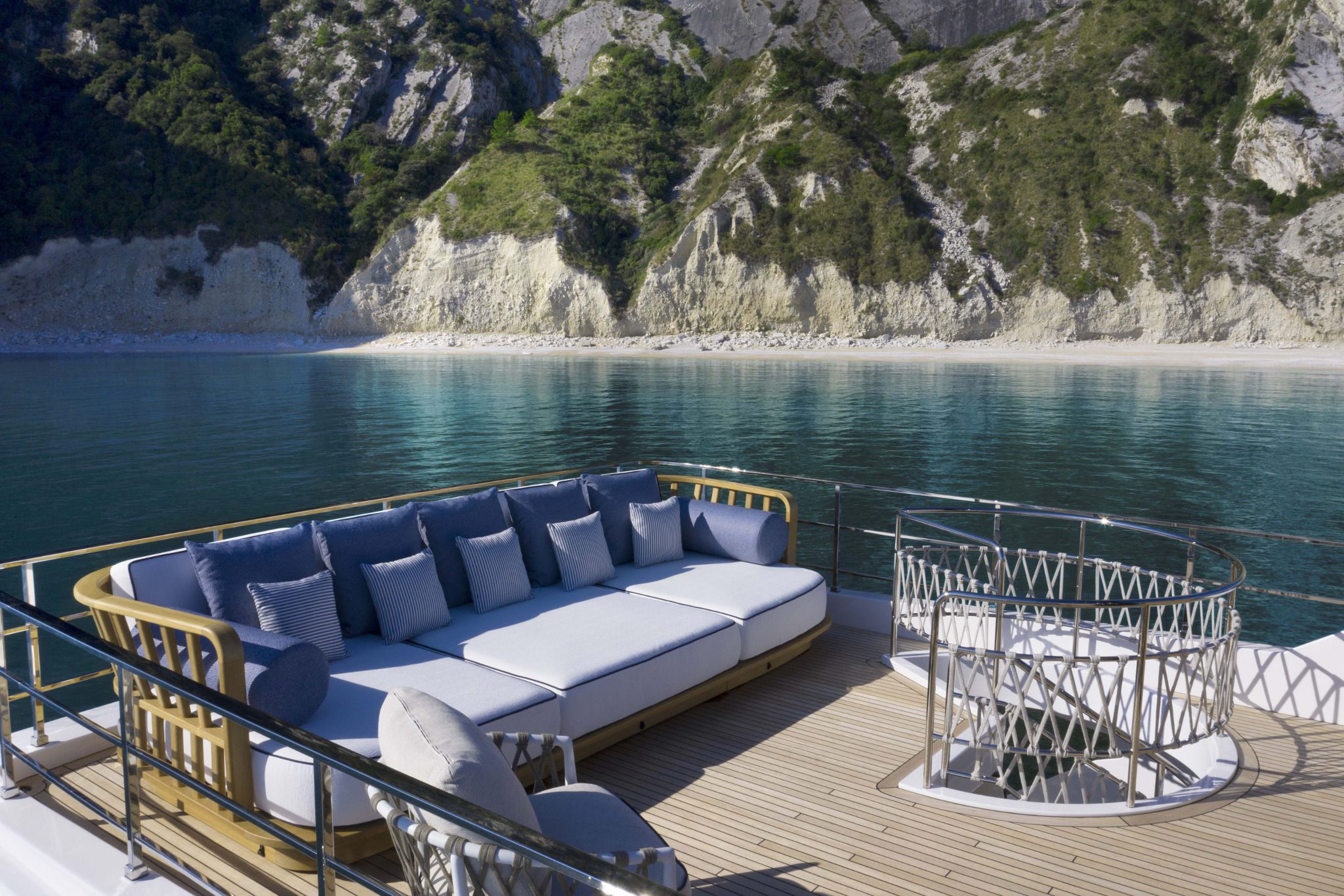

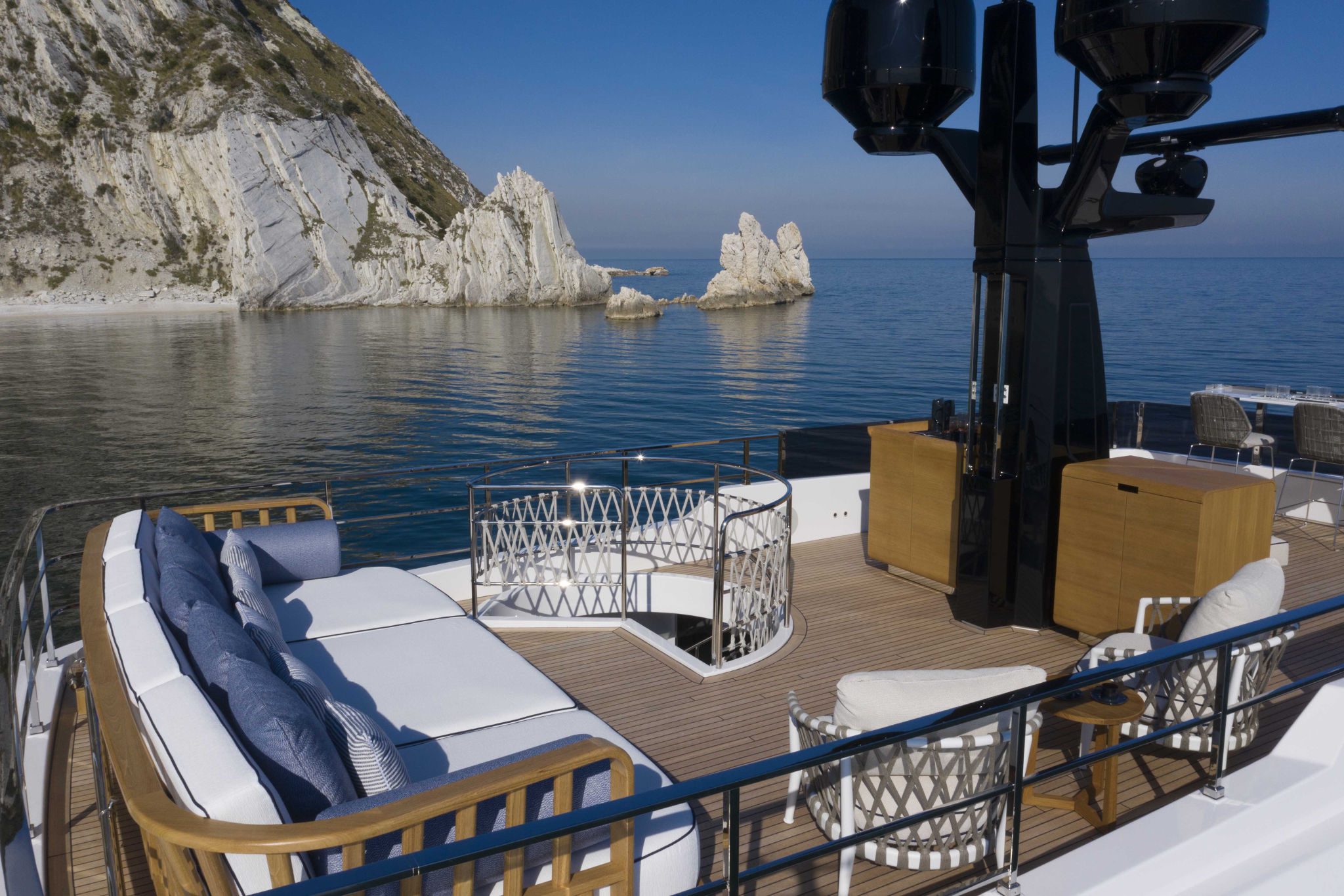

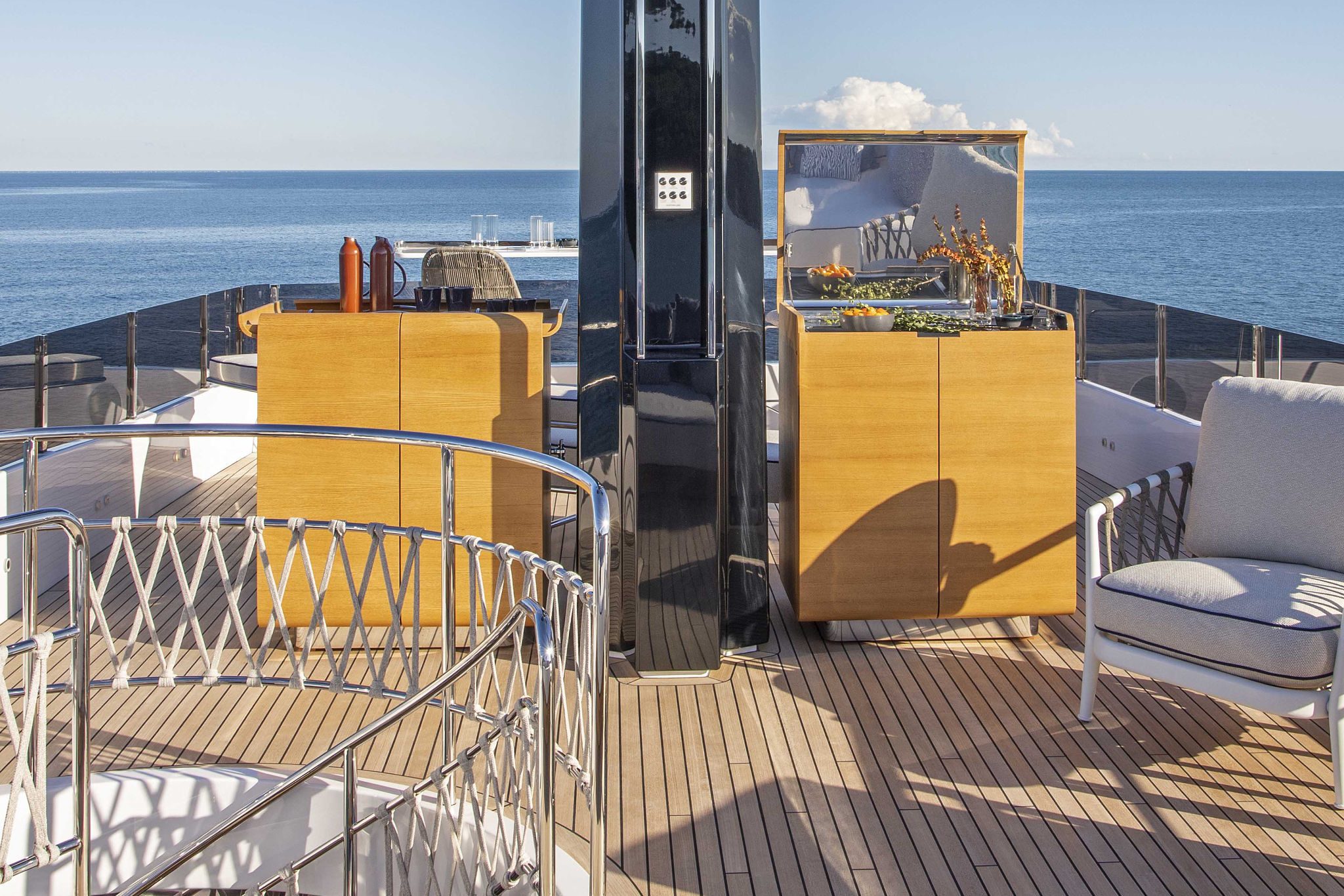

SUN DECK
SUN DECK

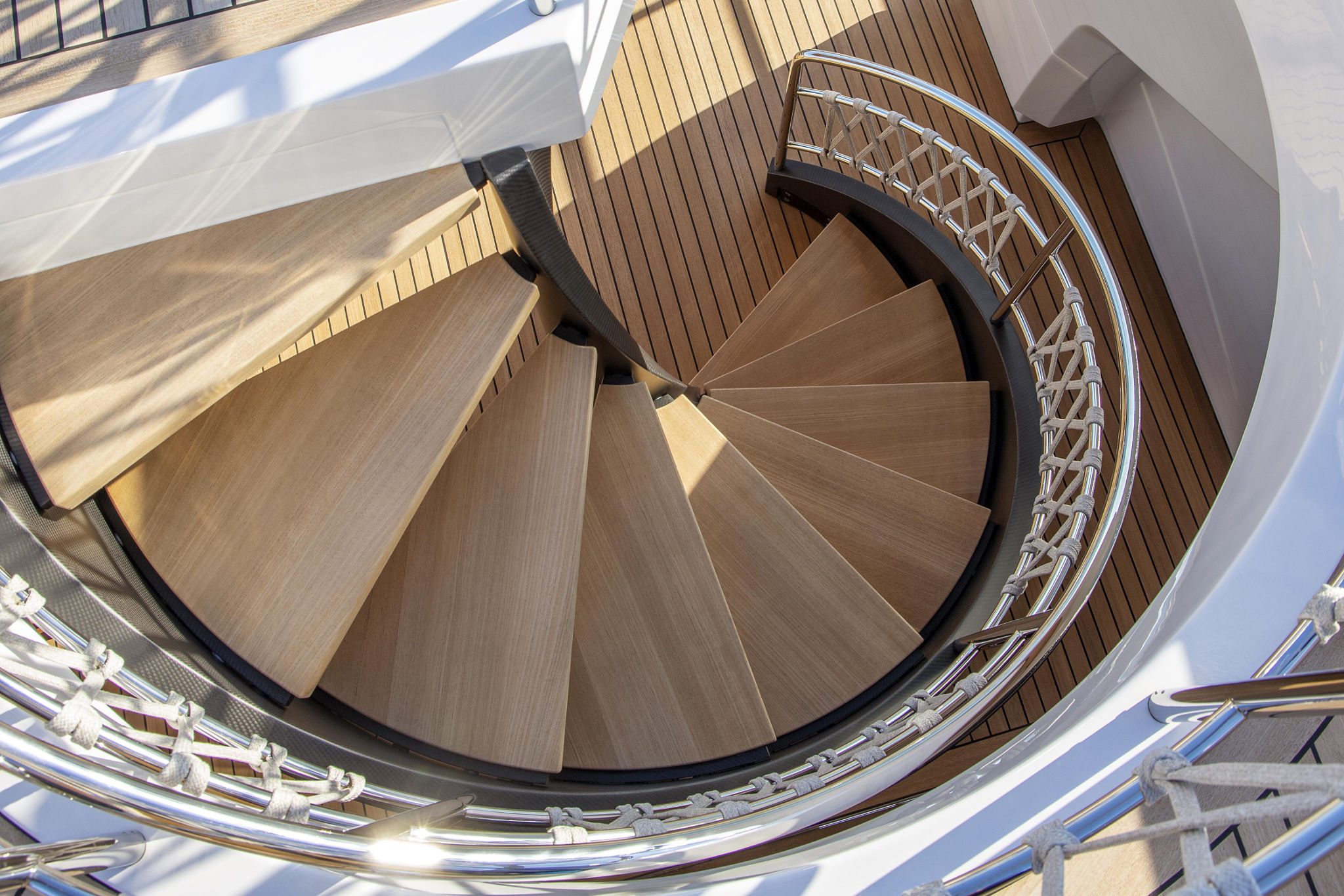

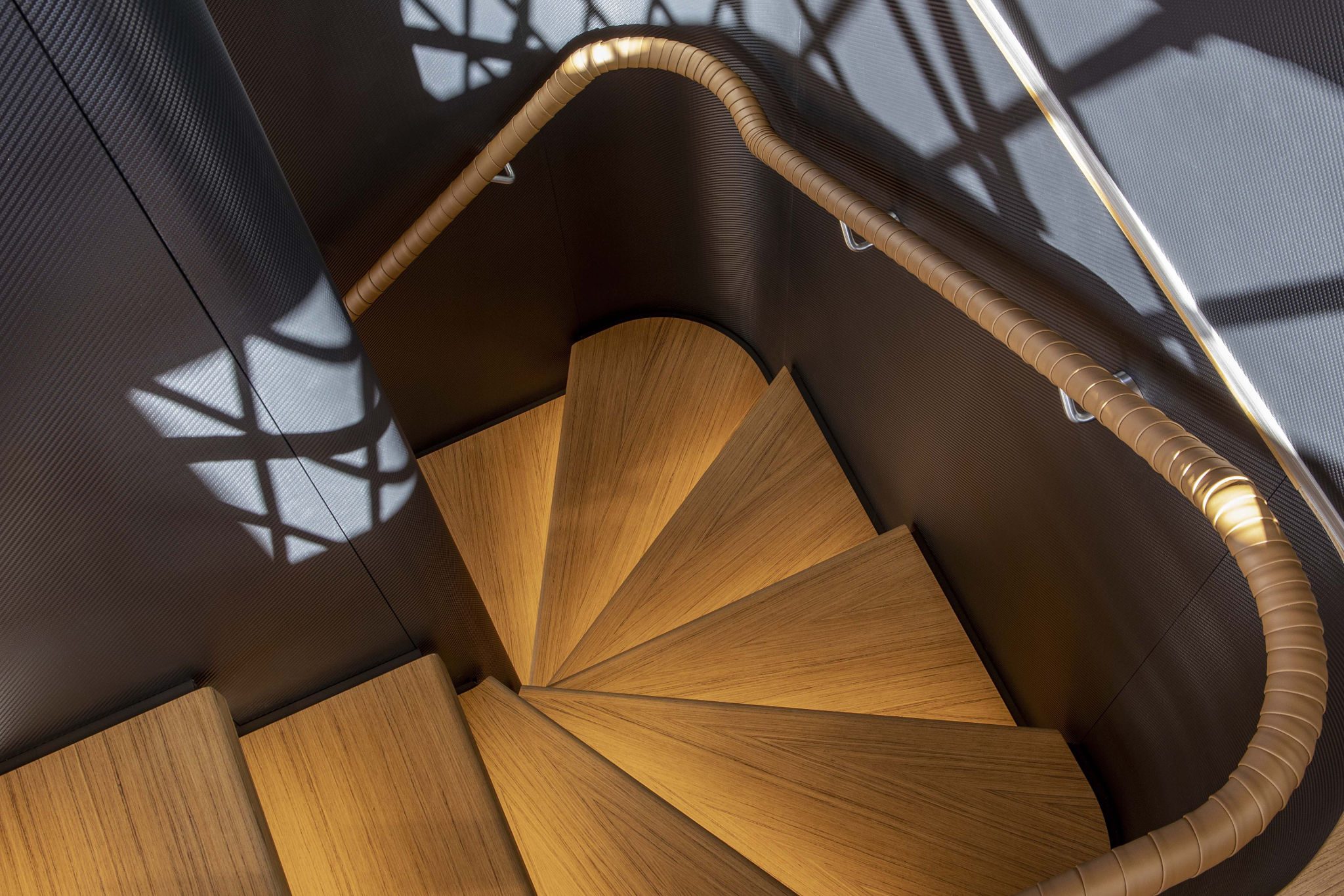

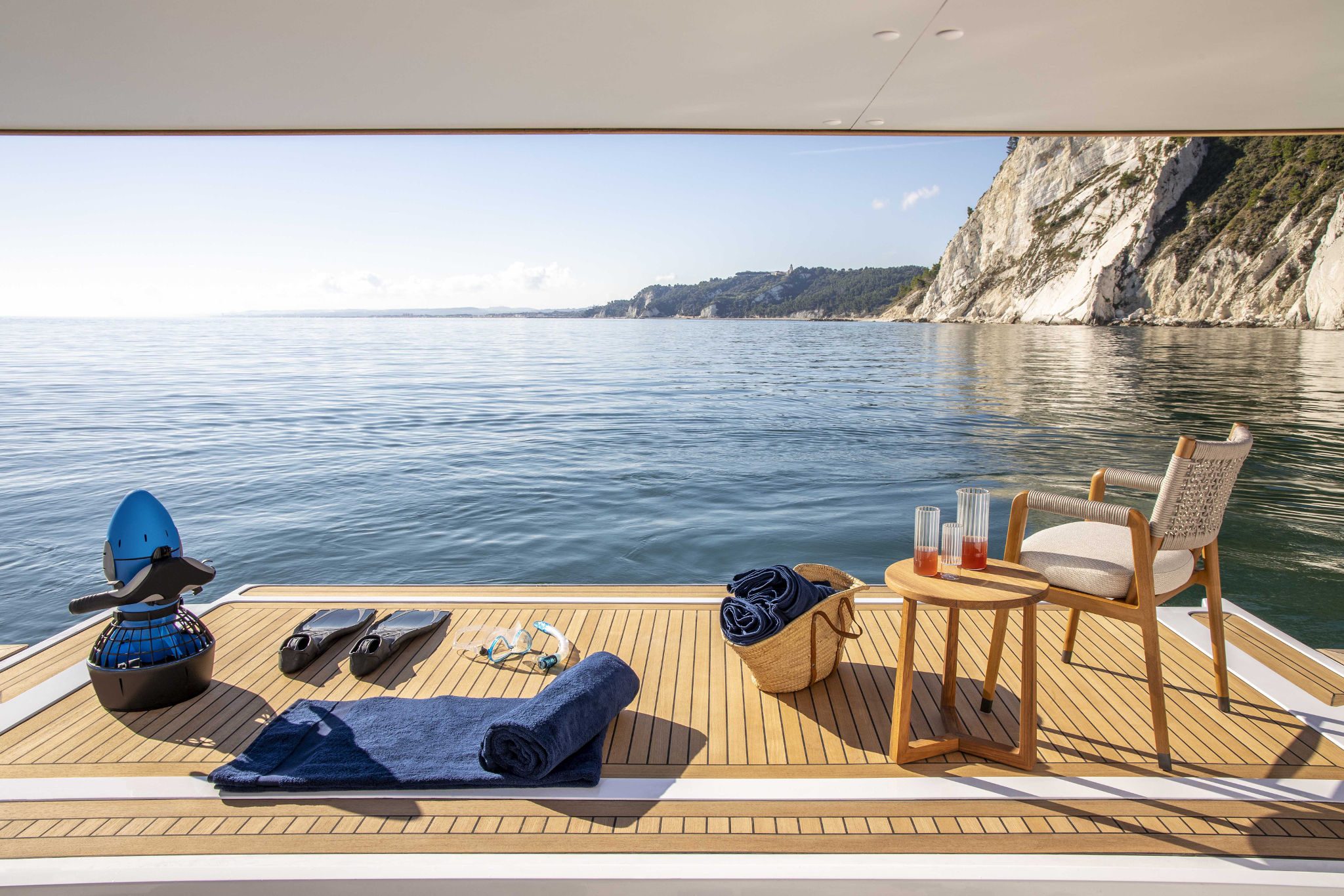

LOWER DECK
LOWER DECK
LAYOUT
TECH SPEC
PRELIMINARY DATA LAST UPDATE: 11/10/2020 |
MAN I6 – 800 CR 5 CABINS + 3 CREW |
MAN V8-1000 5 CABINS + 3 CREW |
MAN V8-1200 5 CABINS + 3 CREW |
LOA | 28,43 [M] – 93 FT 3 IN | ||
LH | 23,98 [M] – 78 FT 8 IN | ||
LWL | 23,85 [M] – 78 FT 3 IN | ||
MAX BEAM | 7,31 [M] – 24 FT 0 IN | ||
DRAFT | 2,20 [M] – 7 FT 3 IN | ||
UNLADEN DISPLACEMENT | 115.000 [KG] – 253,532 [LBS] | ||
LADEN DISPLACEMENT | 135.000 [KG] – 297,624 [LBS] | ||
FUEL | 14.500 [L] – 3,830 [US GAL] | ||
WATER | 2.500 [L] – 660 [US GAL] | ||
MATERIAL | GRP | ||
PEOPLE ON BOARD | 20 | ||

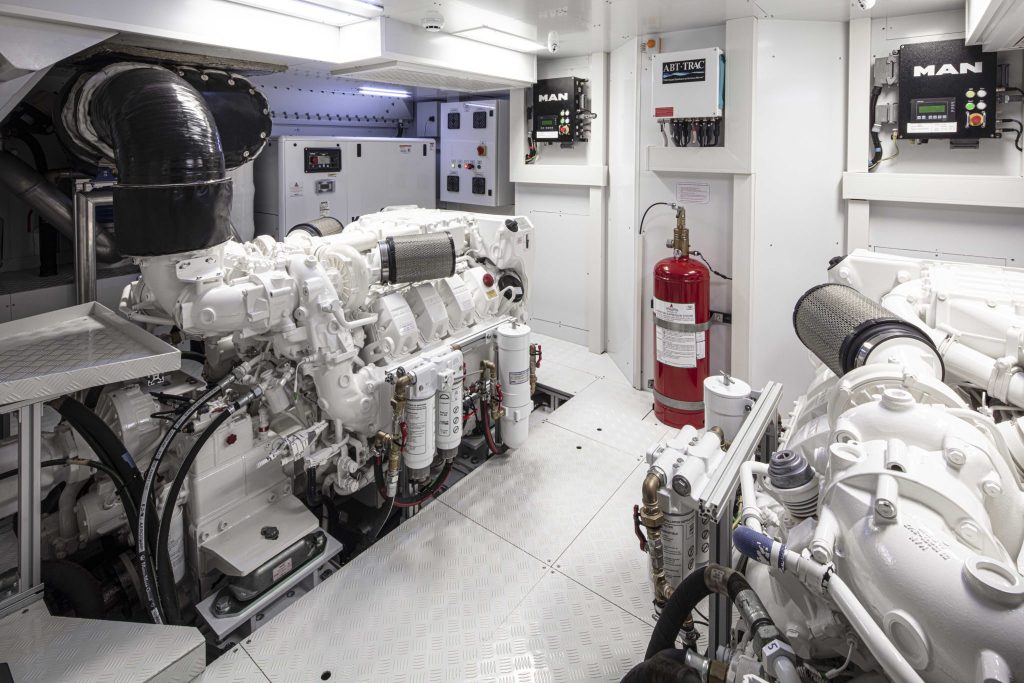

ENGINE | MAN I6 – 800 CR | MAN V8-1000 | MAN V8-1200 |
ENGINE HP | 800 | 1000 | 1200 |
TRANSMISSION | SHAFT LINE | ||
MAX SPEED | 14 [KN] | 14.5 [KN] | 15 [KN] |
CRUISE SPEED | 12 [KN] | 13 [KN] | |
RANGE | 900 [NM] | 850 [NM] | 800 [NM] |
CABINS | 5 | ||
CREW CABINS | 3 STANDARD | ||
BATHROOMS | 6 | ||
BATHROOMS IN CREW QUARTER | 3 | ||
CLASSIFICATION | B + F + AA (SOUND EMISSION) RINA S.P.A. |
