Riva 56' Rivale
Riva 56' Rivale

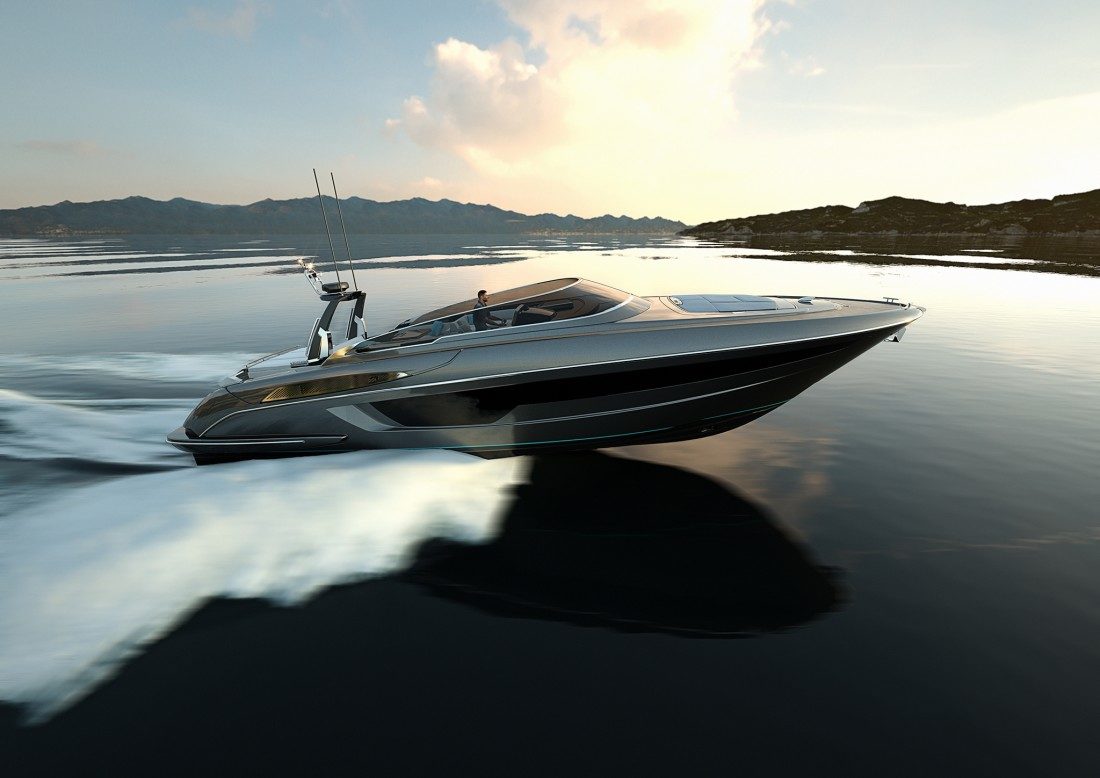

The Riva 56’: a masterpiece unveiled. The Riva 56’ has a completely new hull form and brings the most popular technical and design choices on board, as well as innovative features and elements offering even higher levels of comfort than those that have highlighted the success of Riva yachts over the last three years. The Riva 56’ is the result of the joint efforts of Officina Italiana Design – the studio founded by Mauro Micheli and Sergio Beretta – Ferretti Group’s Product Strategy Committee and Engineering Department. The result is a stylish combination of the most prestigious materials and attention to detail that has always been the hallmark of the Riva world: from the high gloss mahogany of the interiors to the natural teak of the exteriors, the lacquered finishes and stainless steel, mirrors, glass and leather.

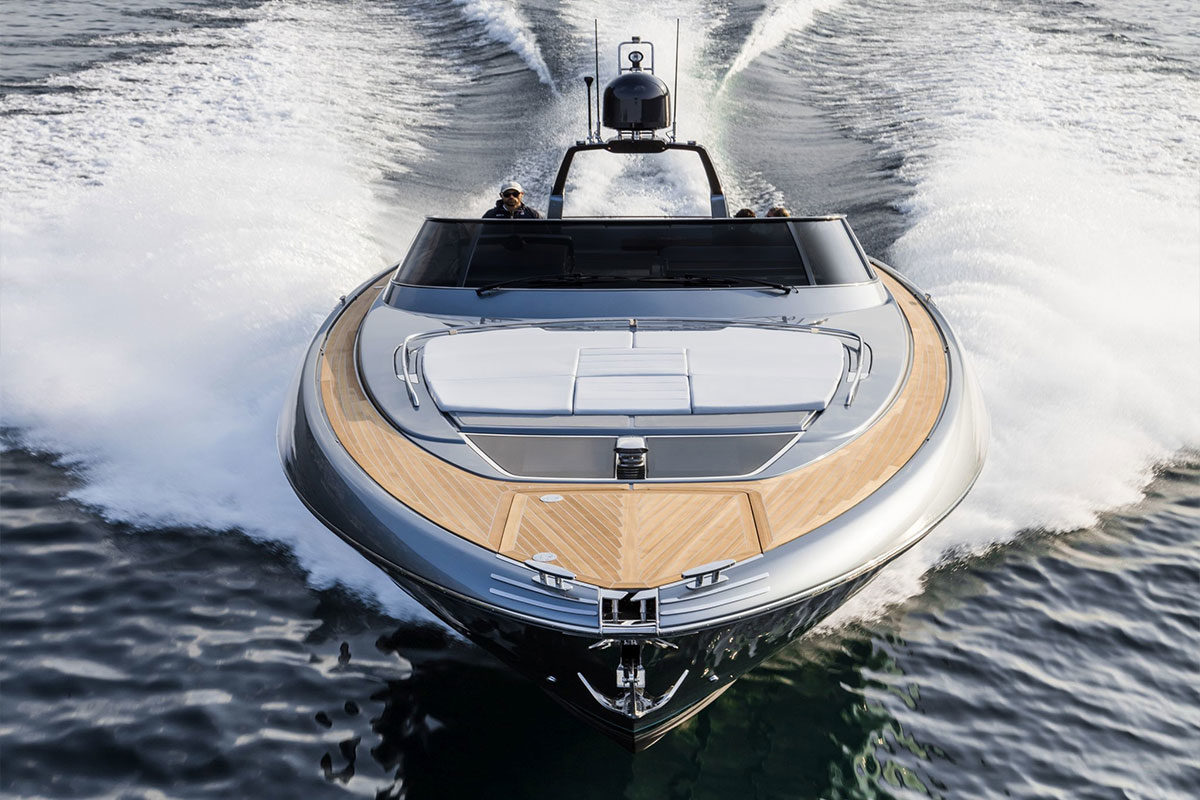

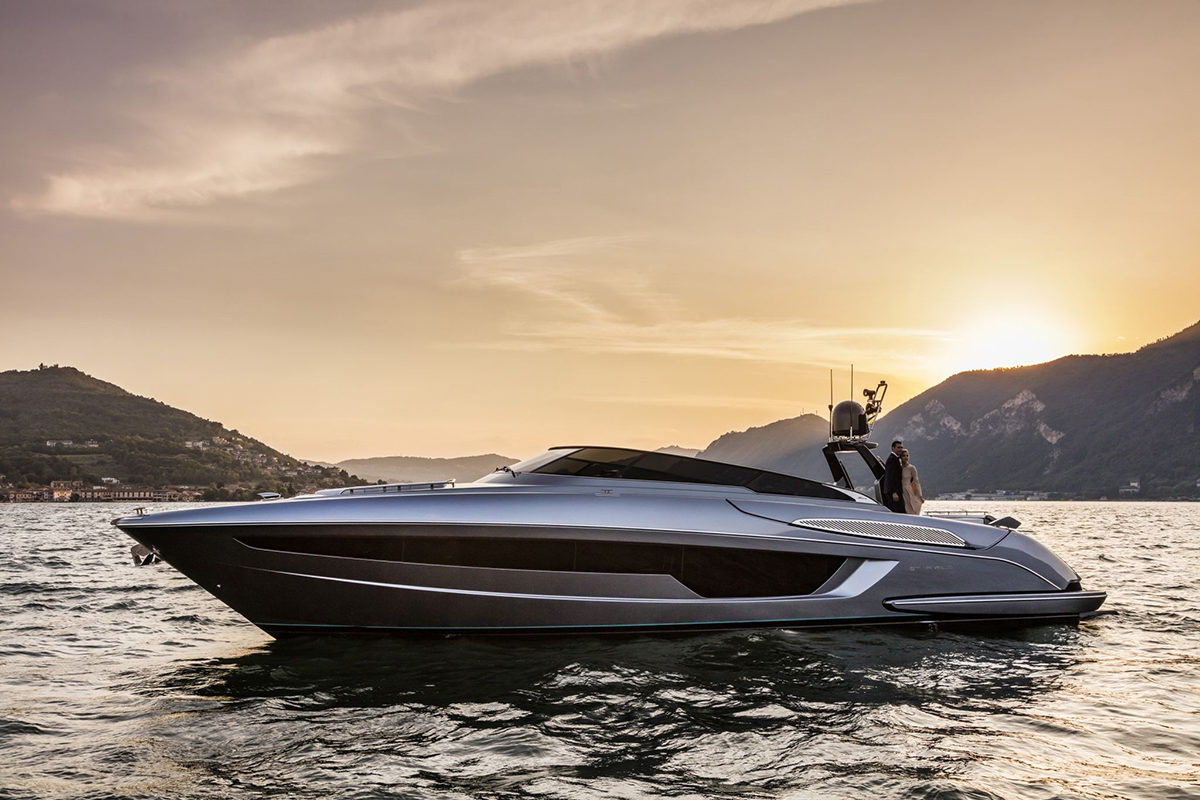

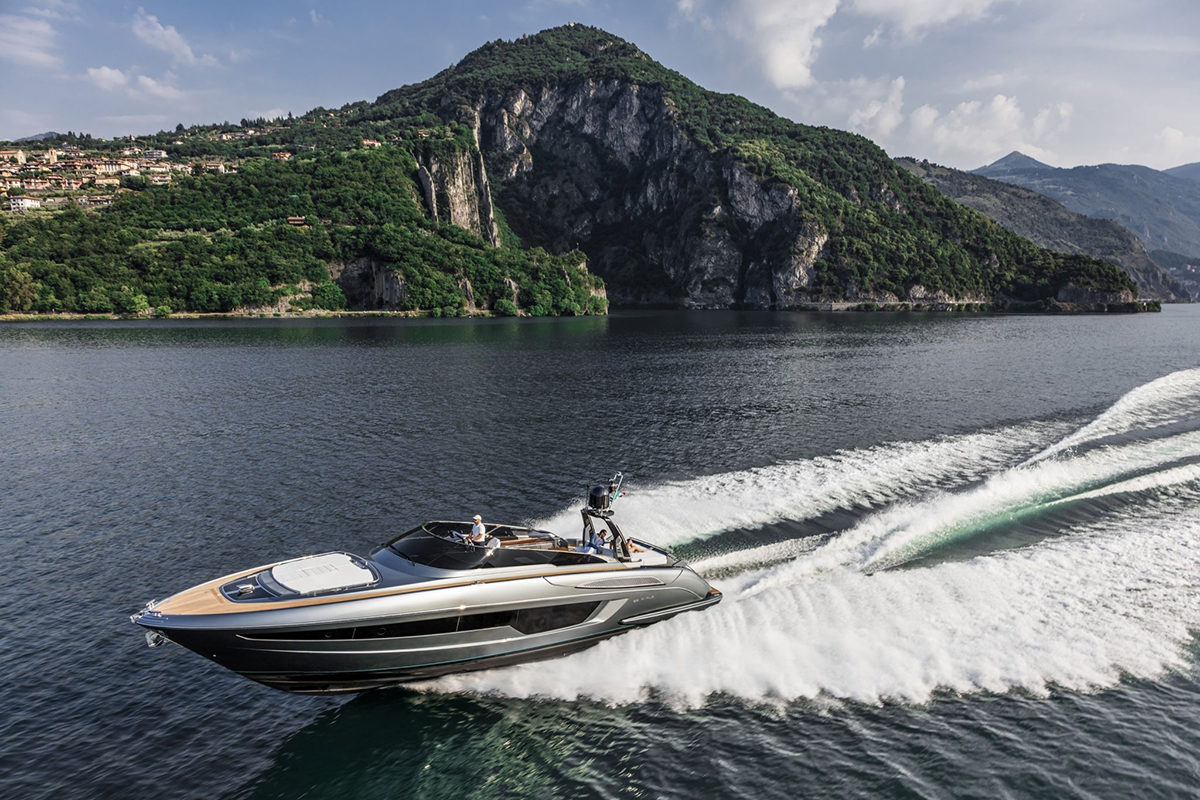

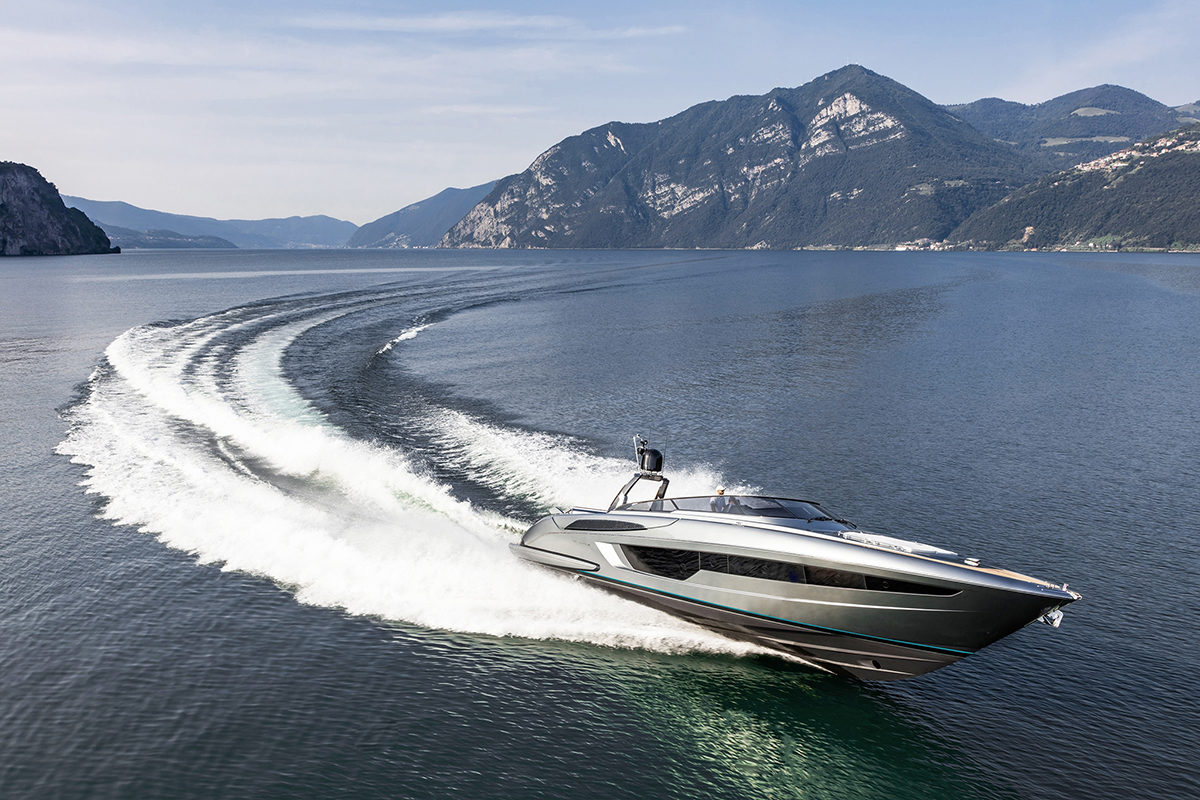

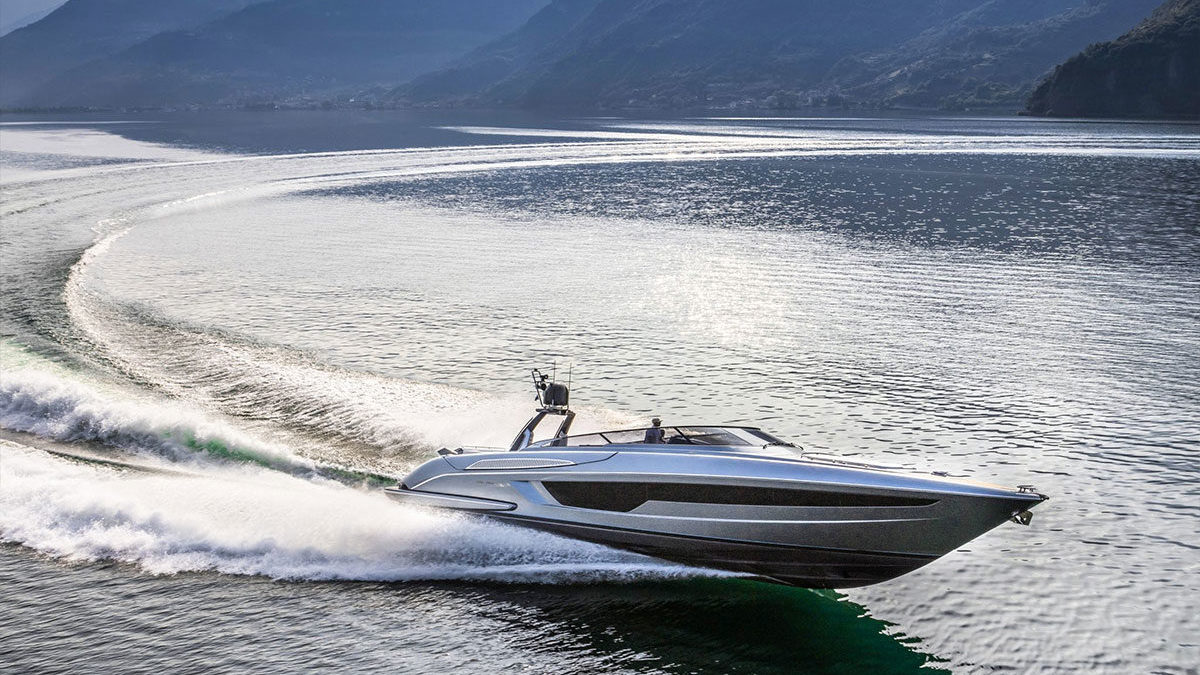

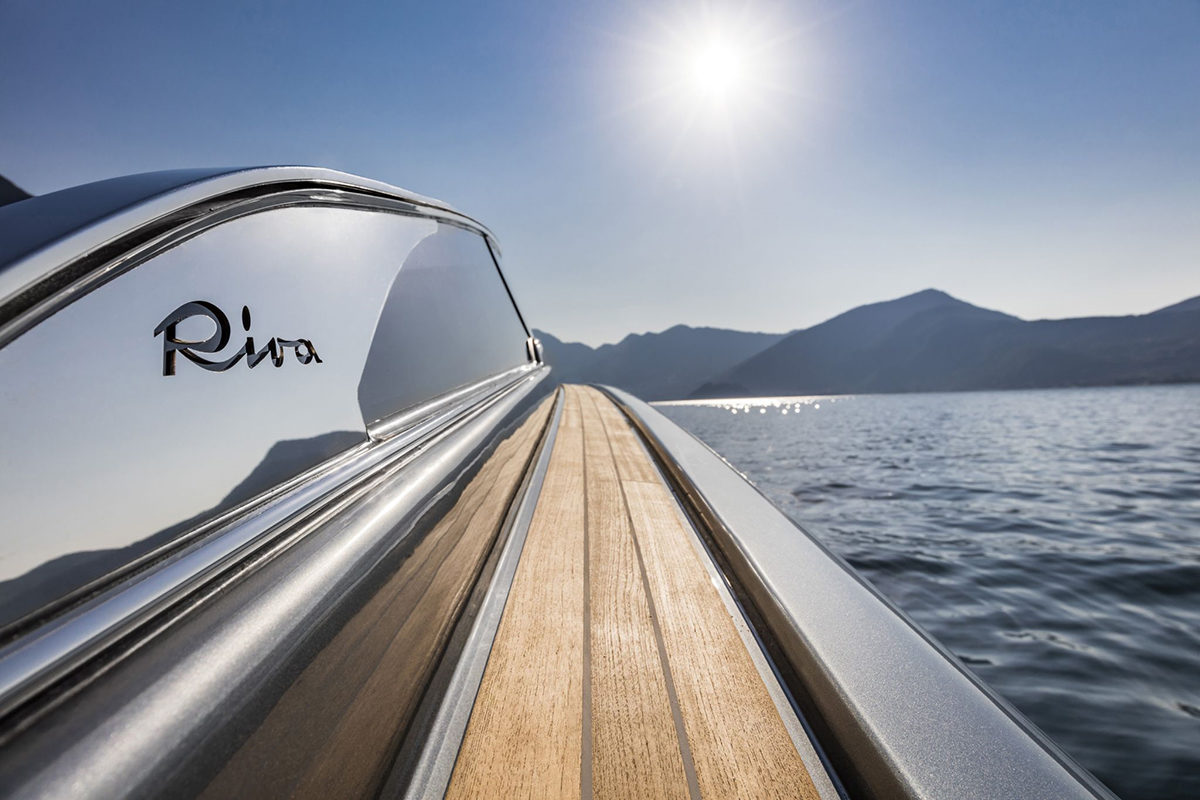

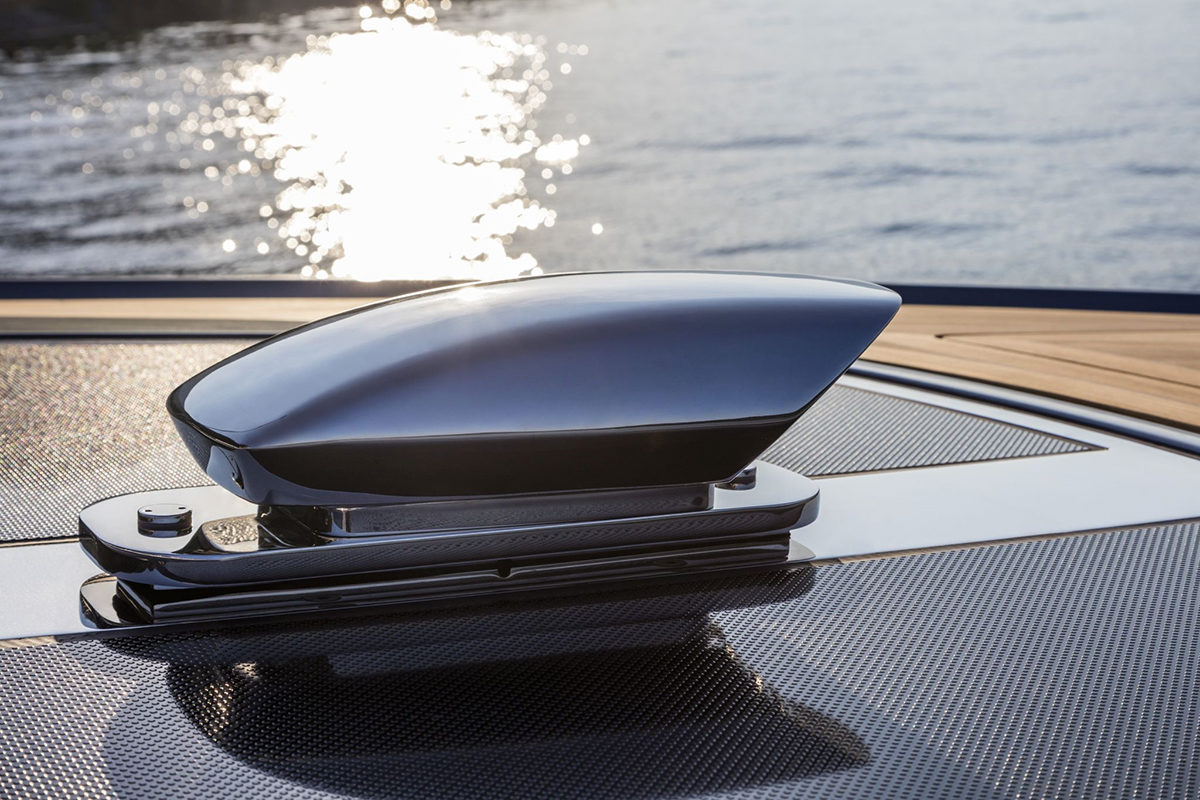

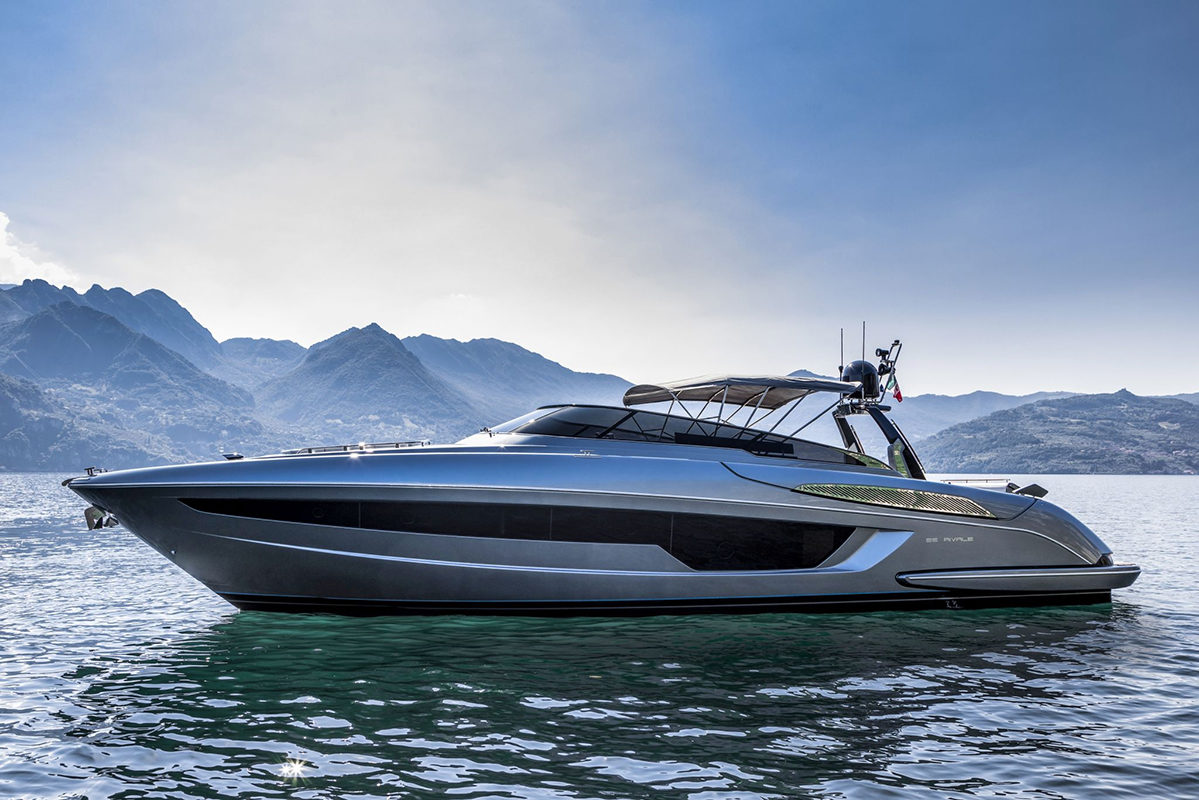

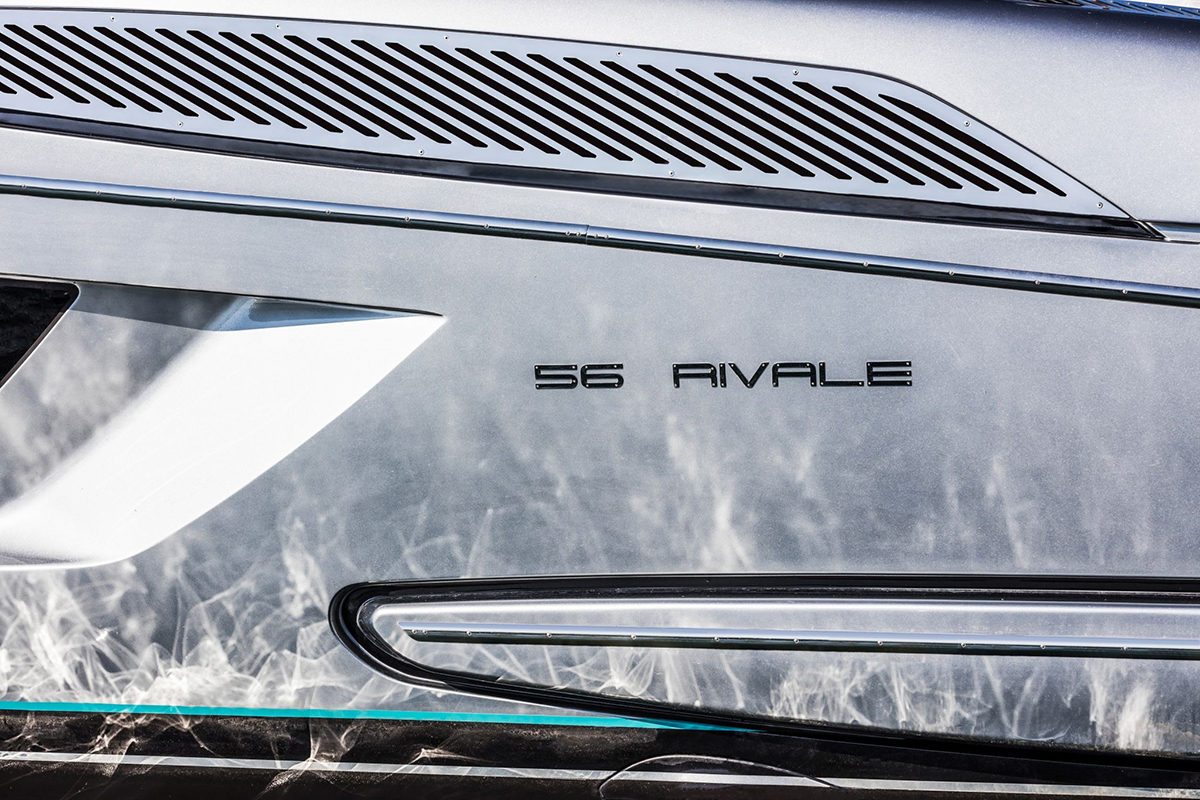

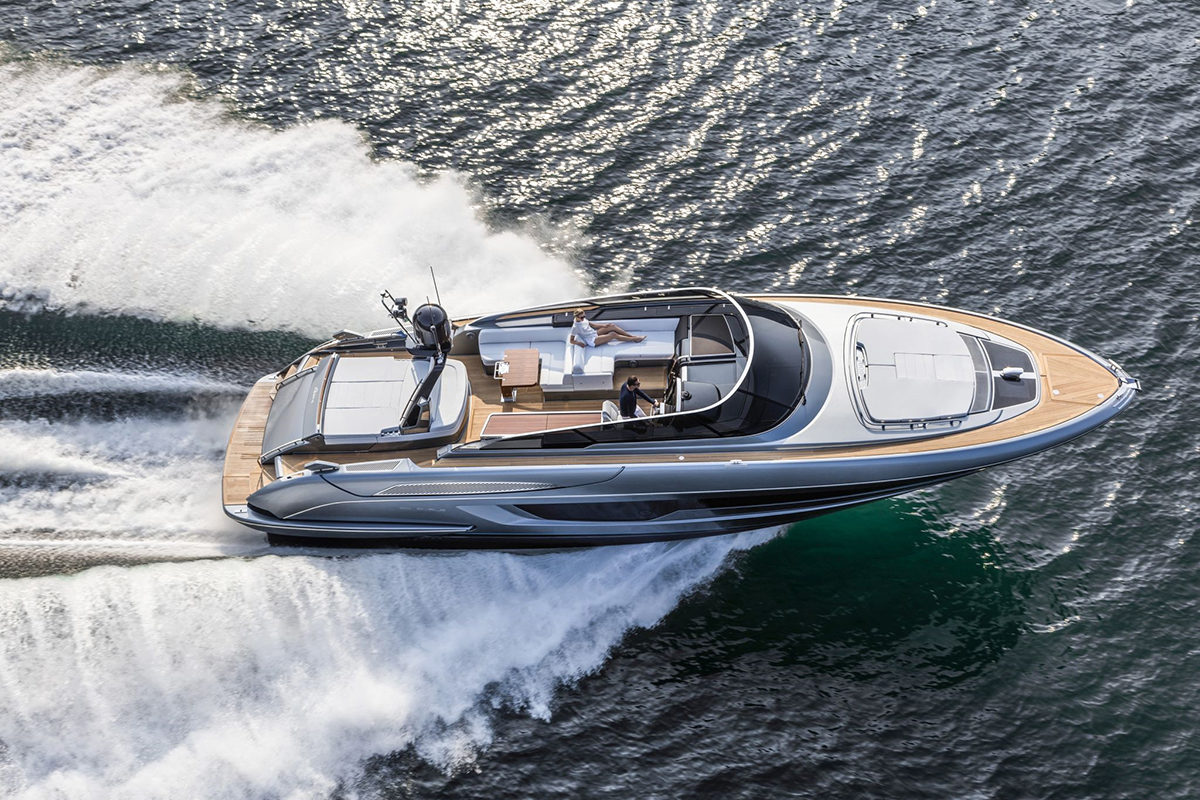

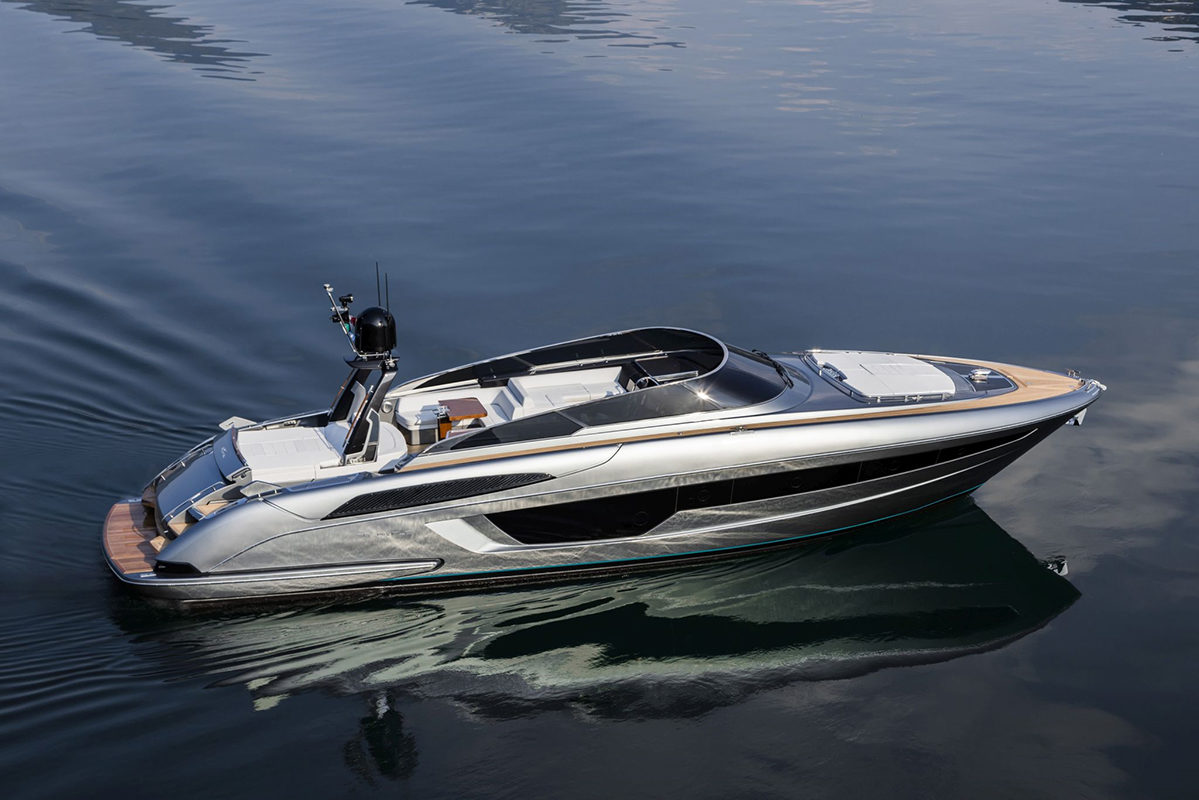

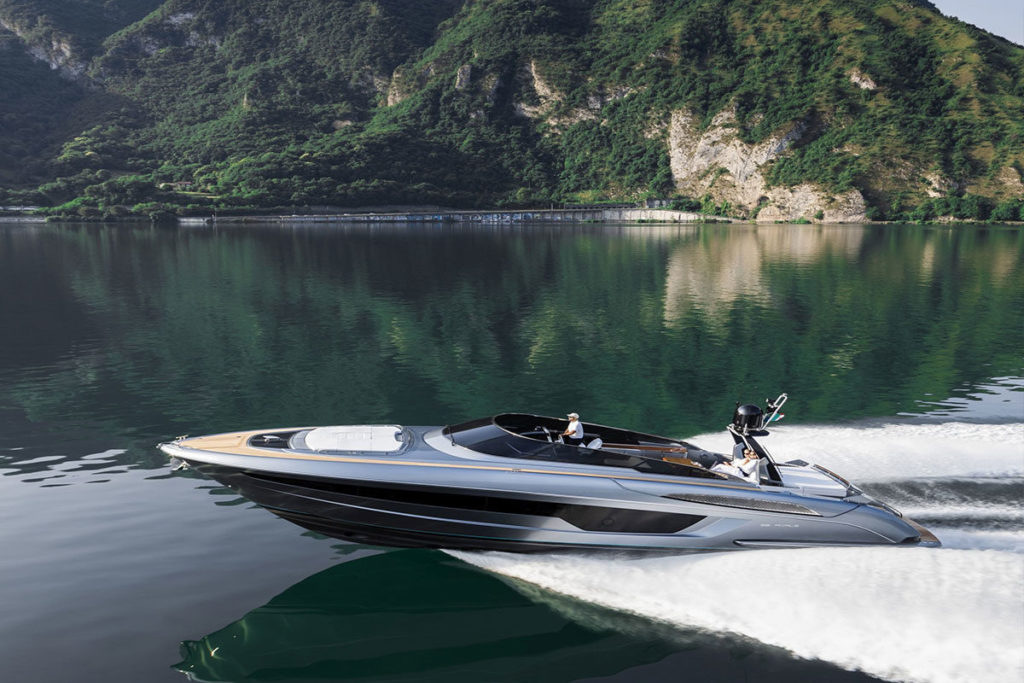

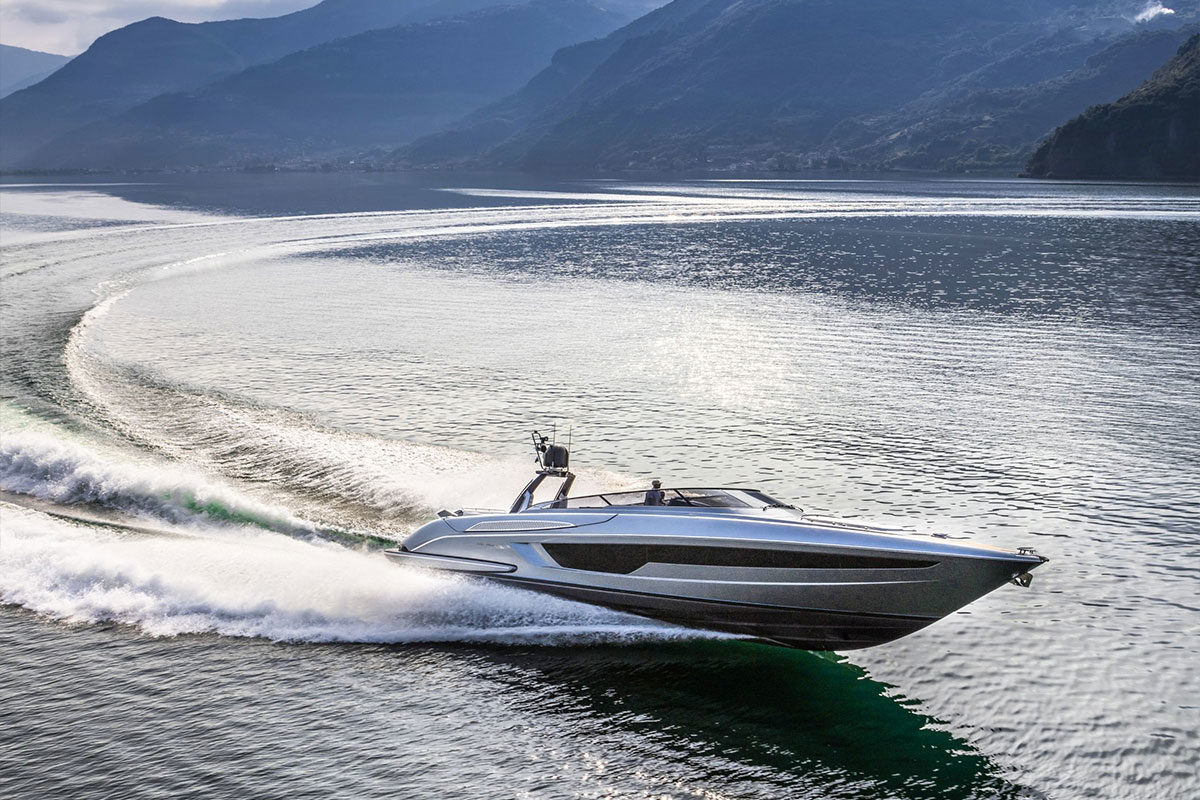

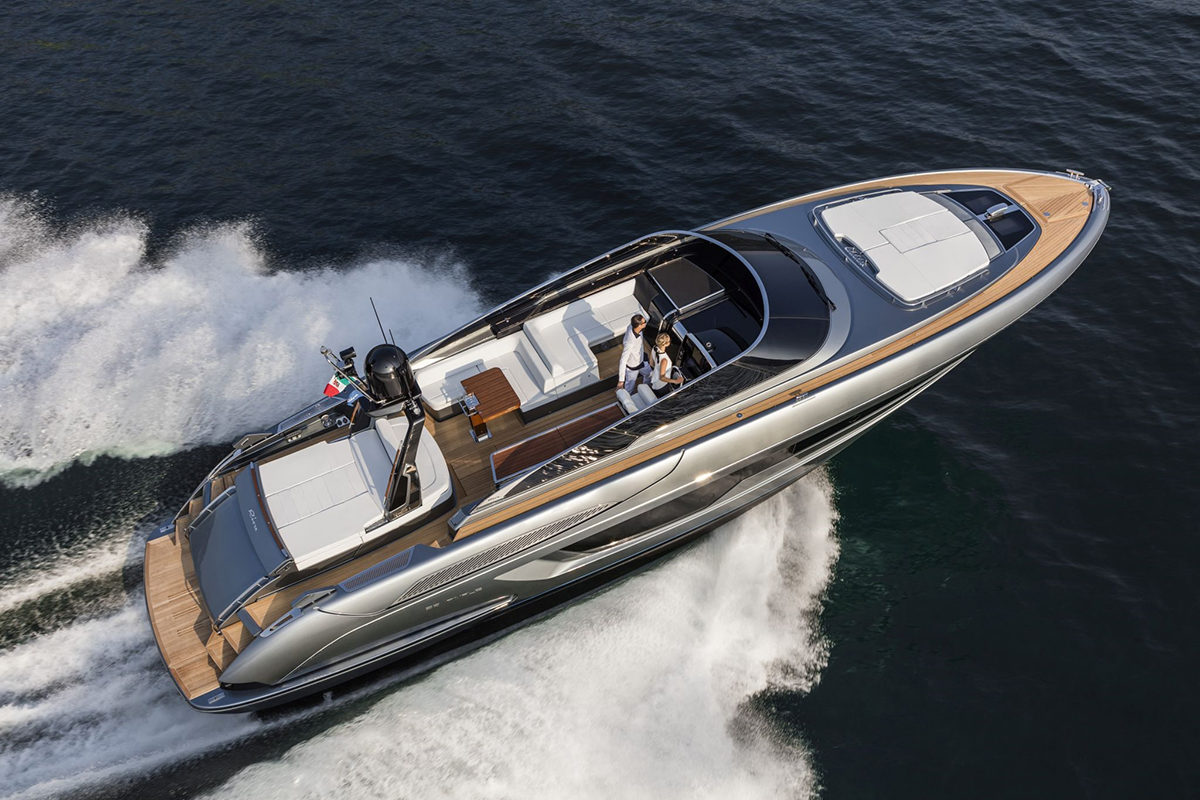

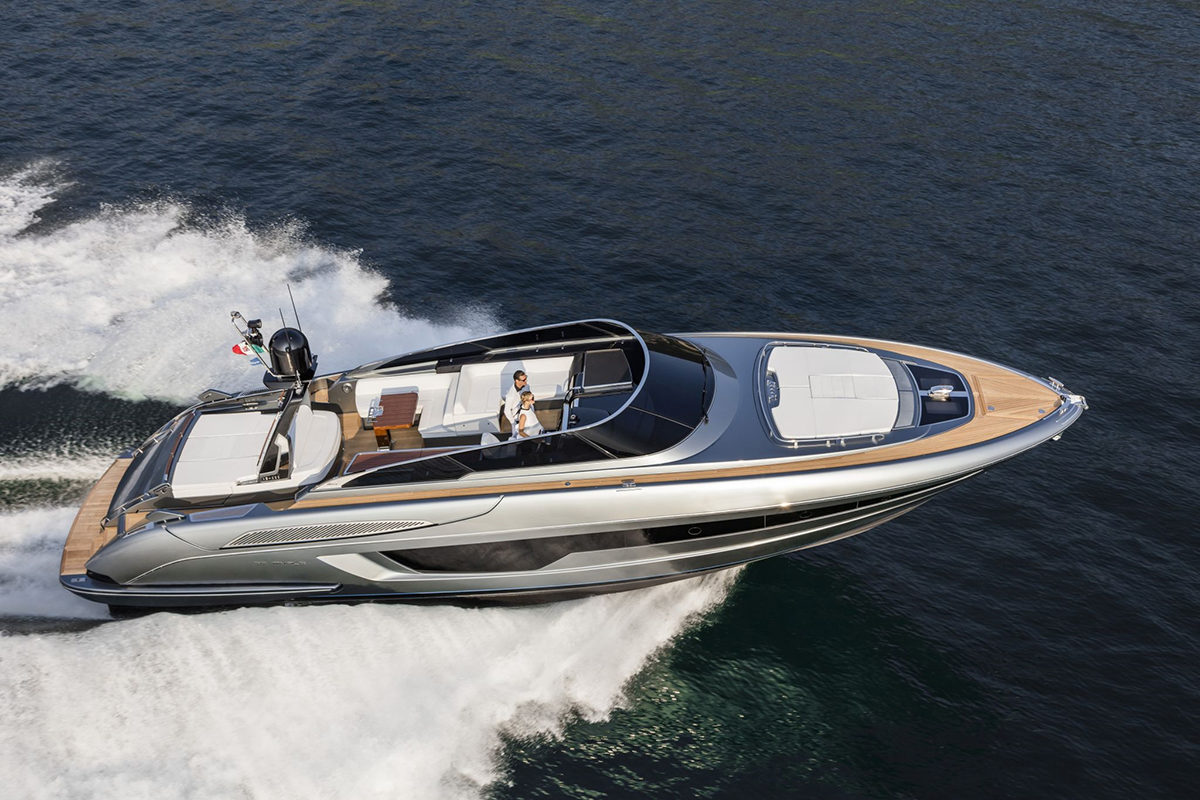

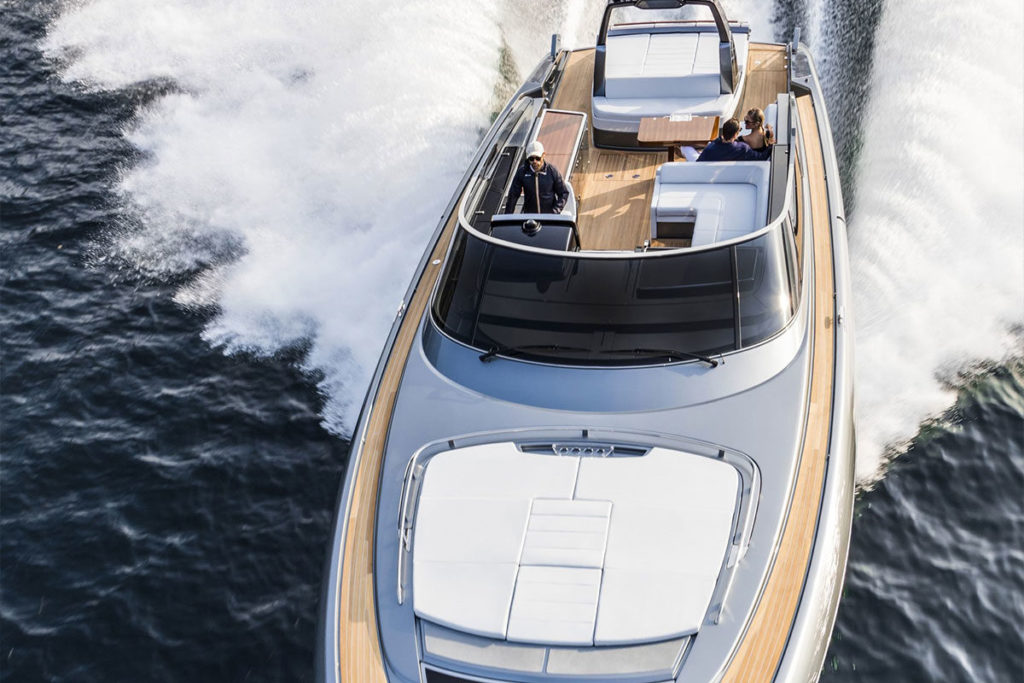

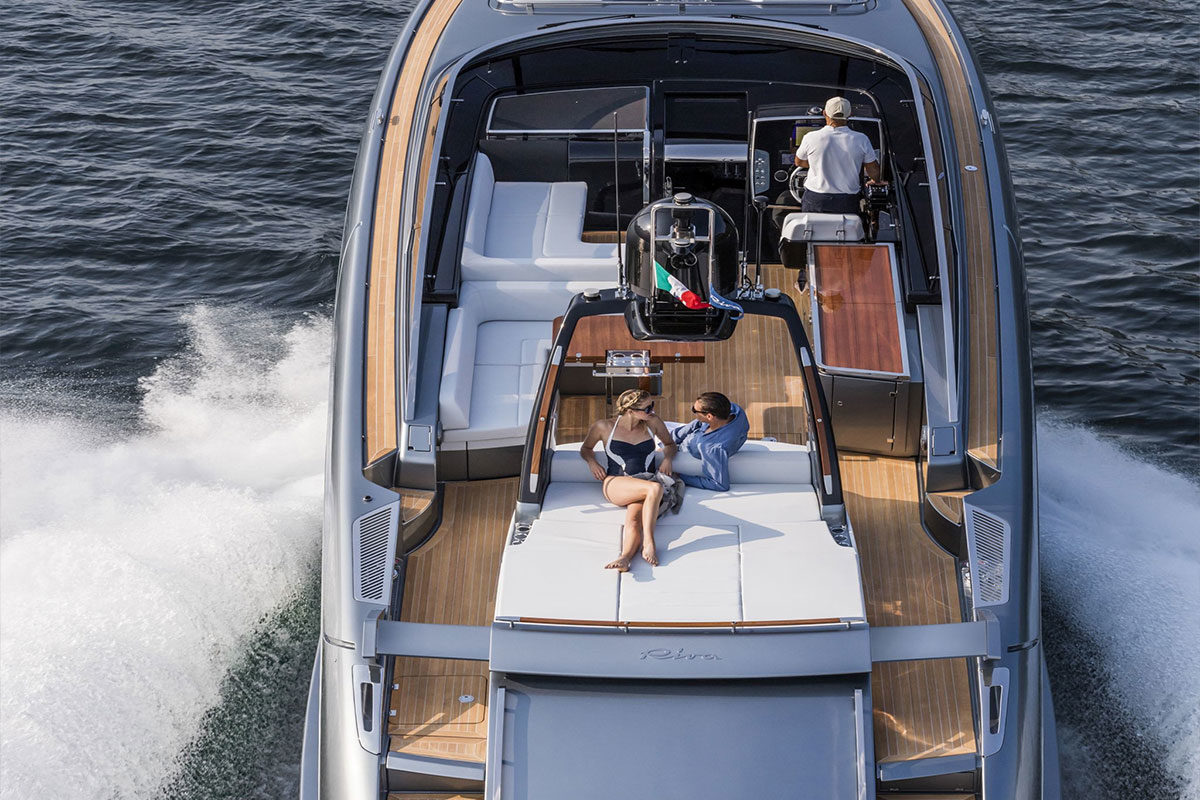

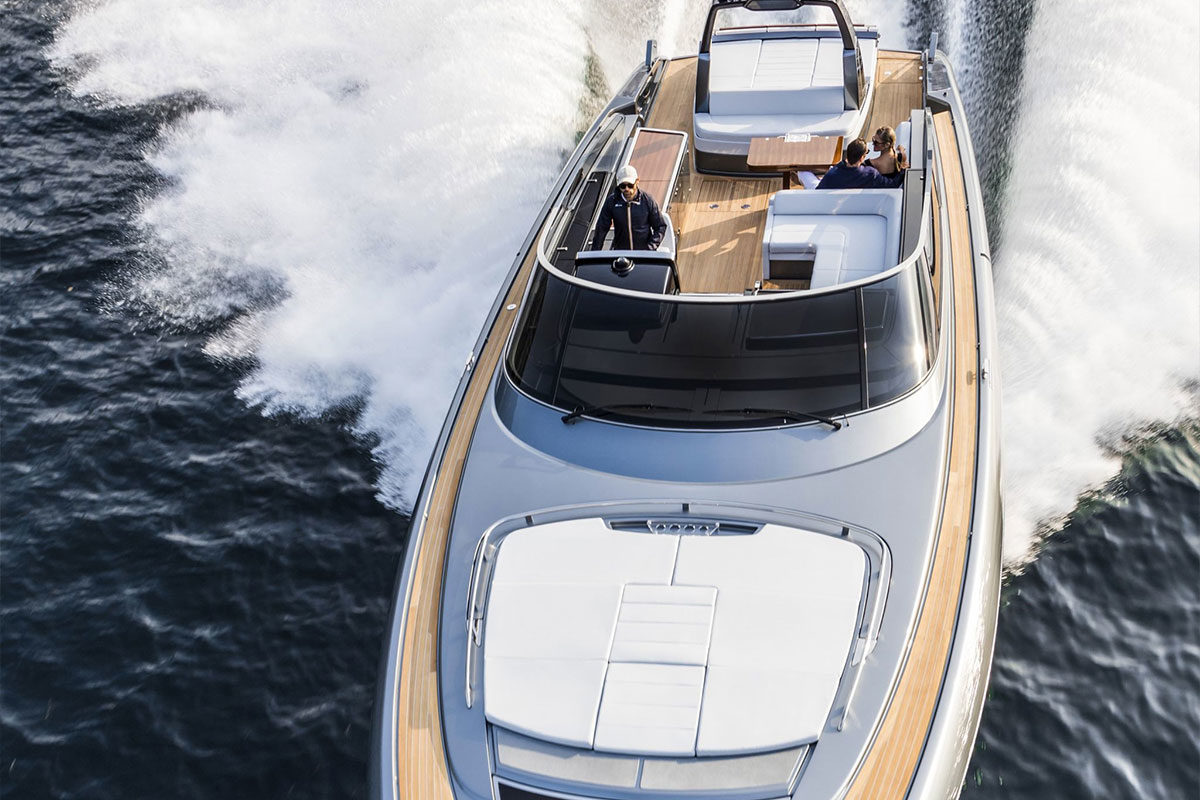

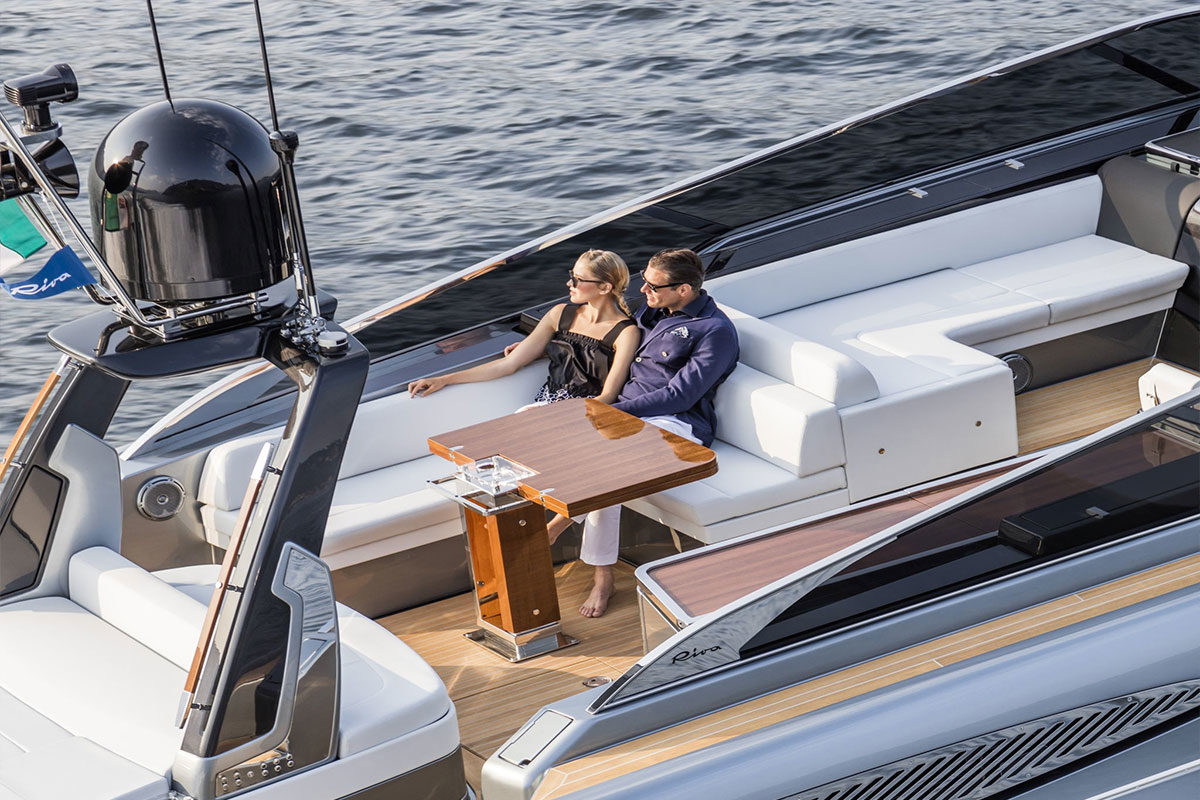

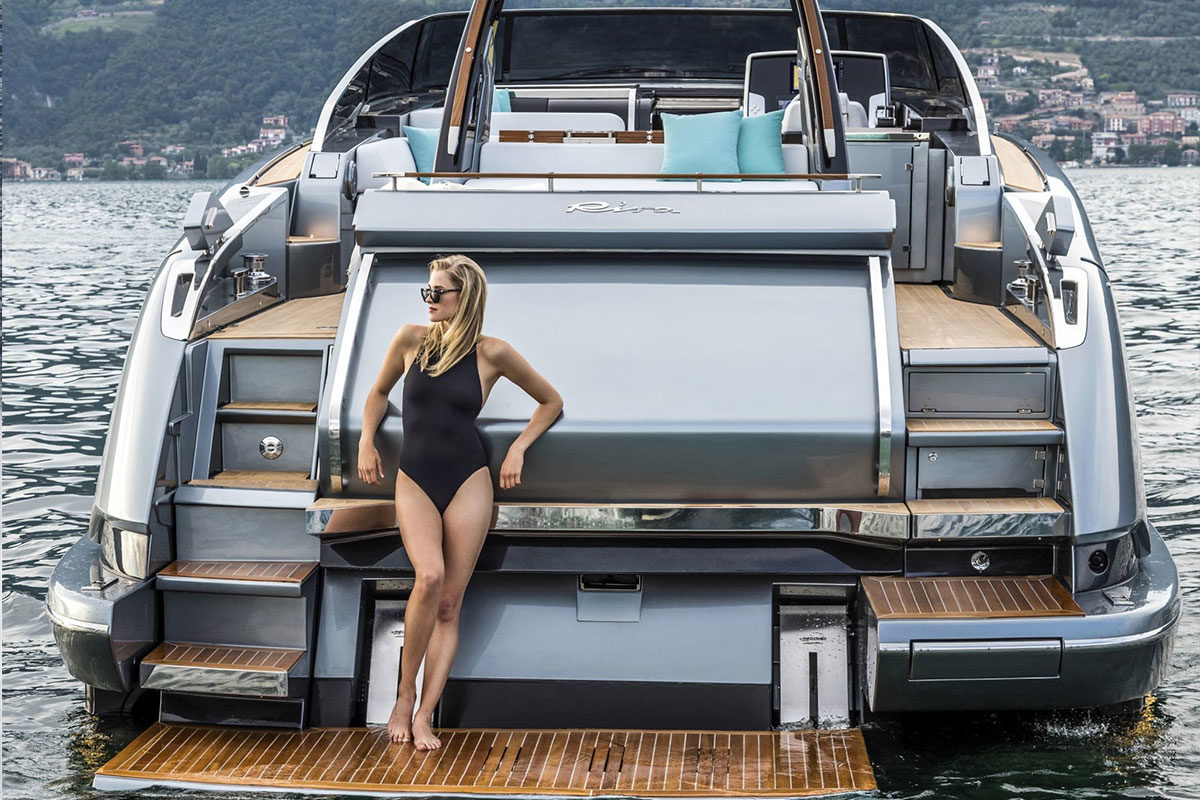

EXTERIOR

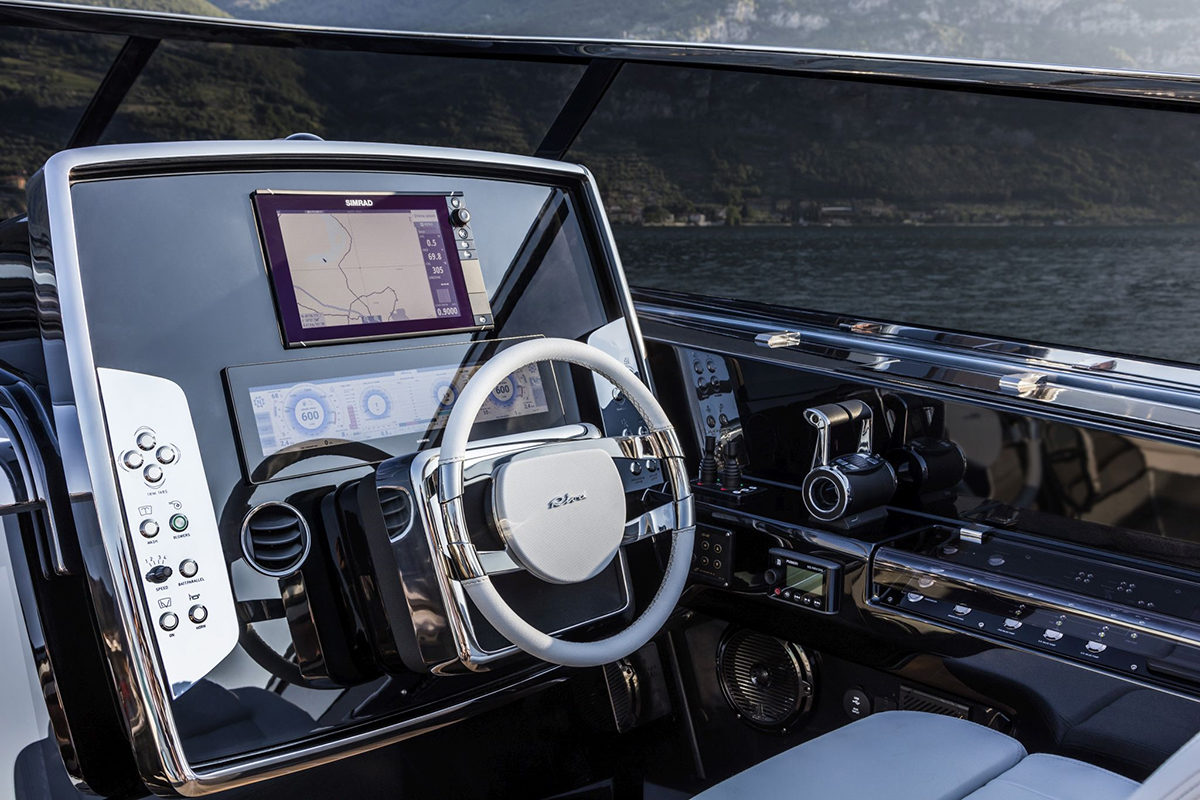

INTERIOR

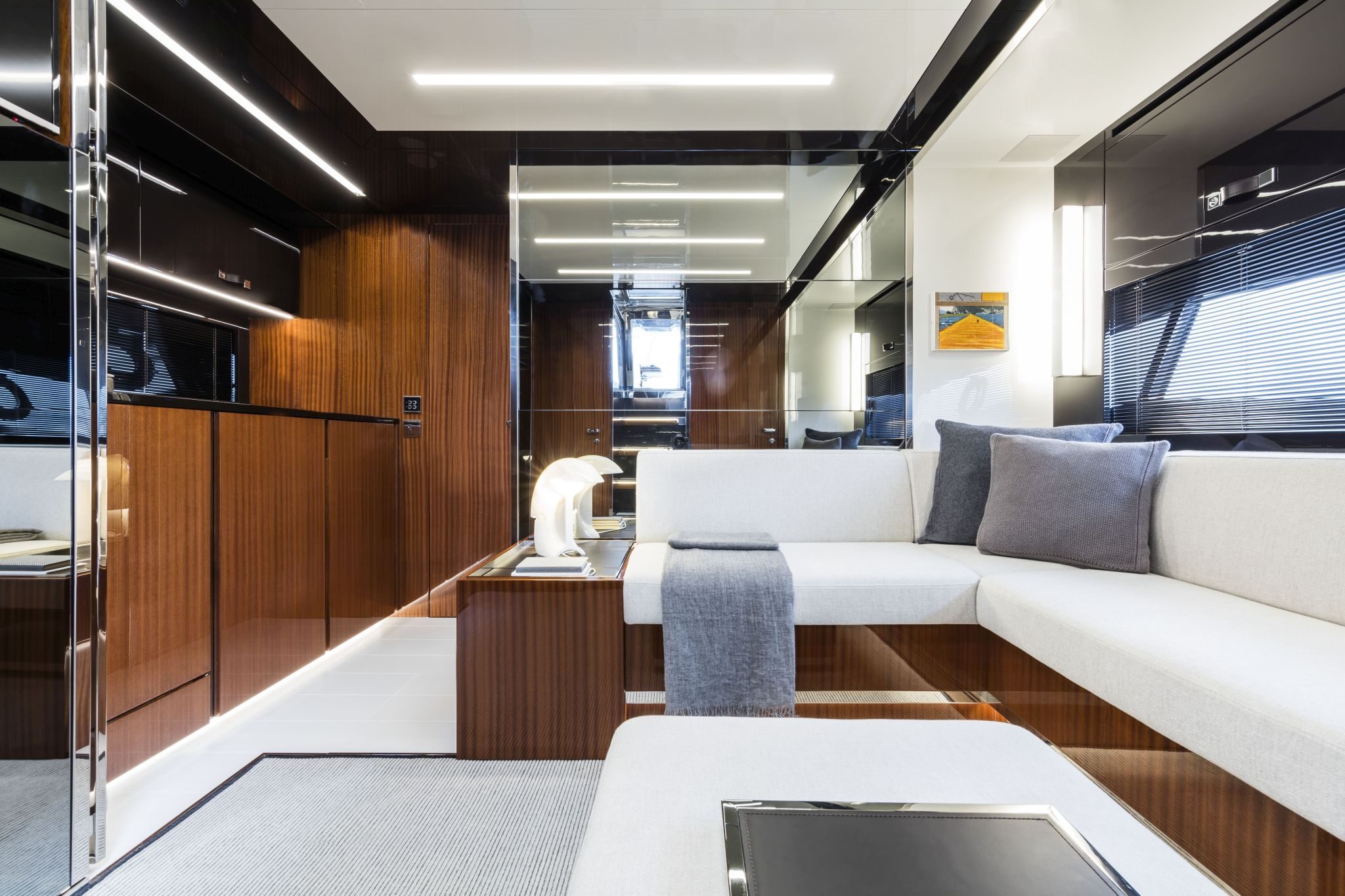

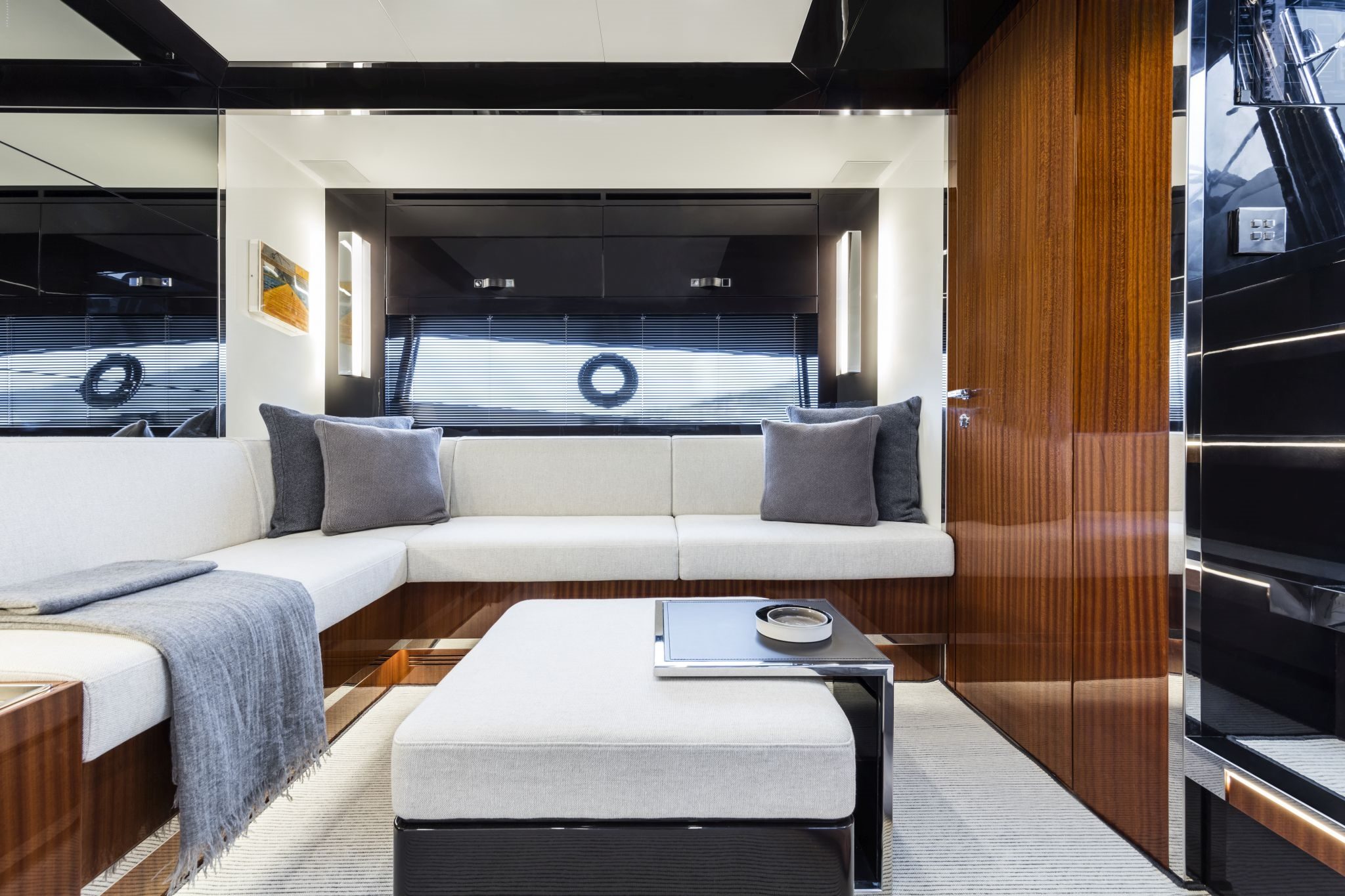

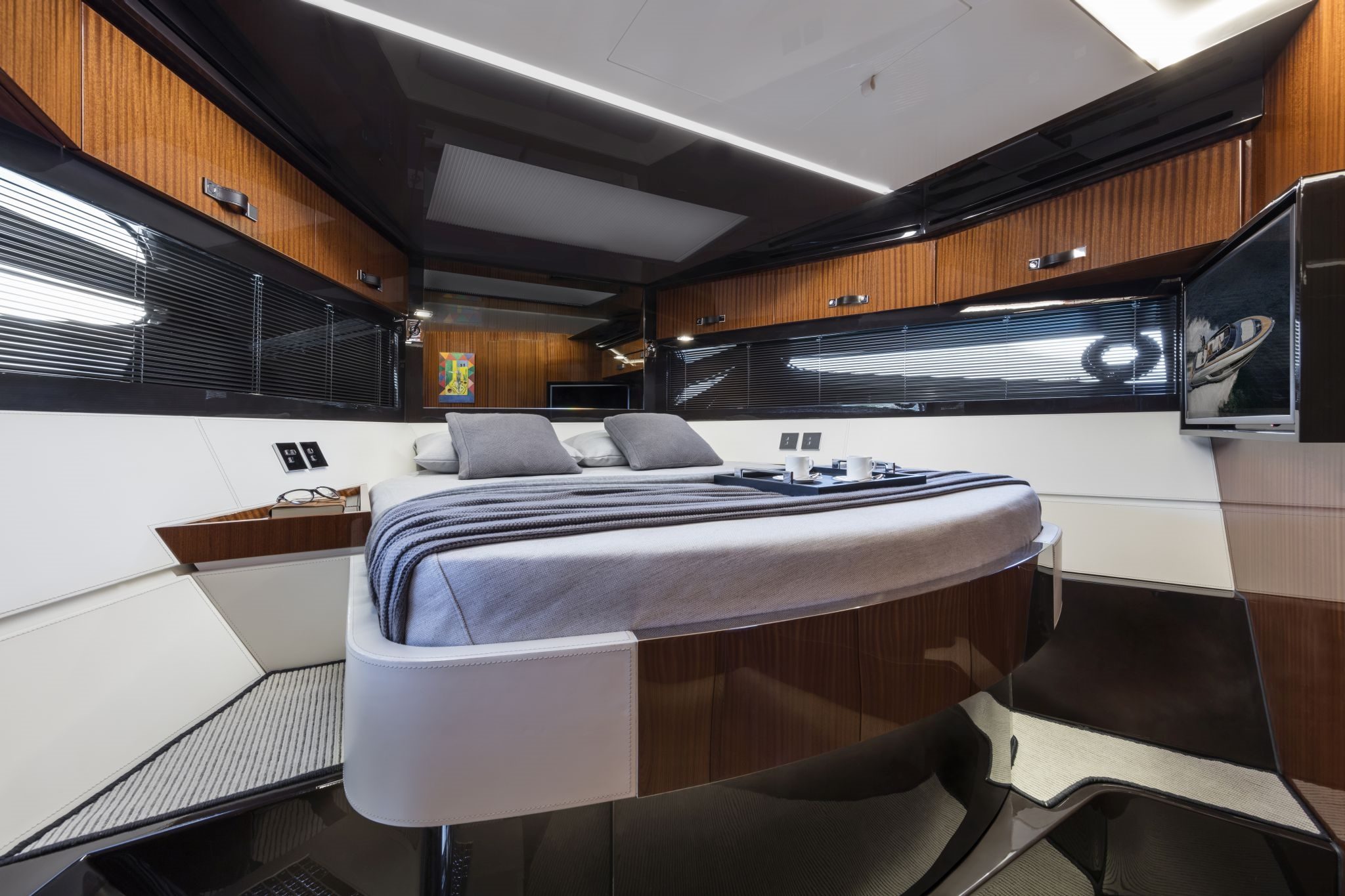

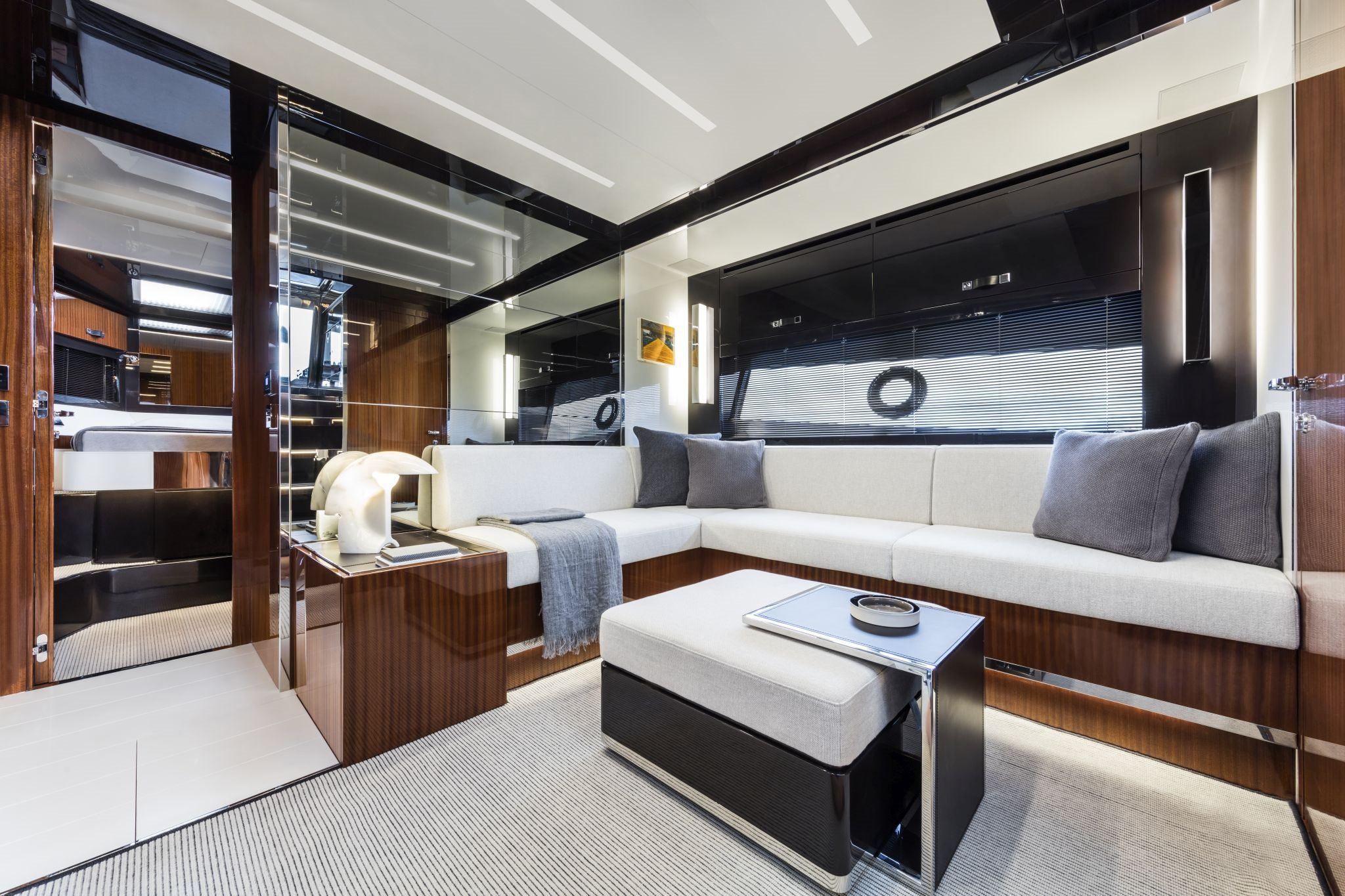

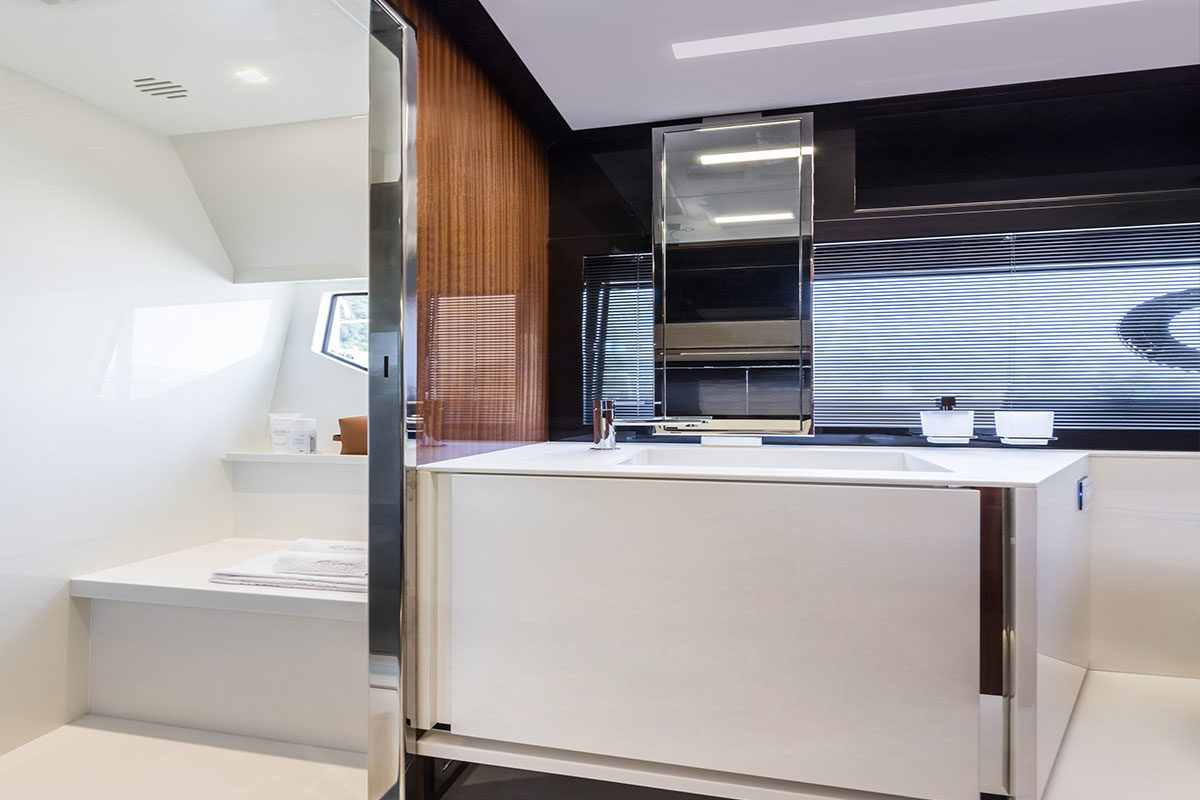

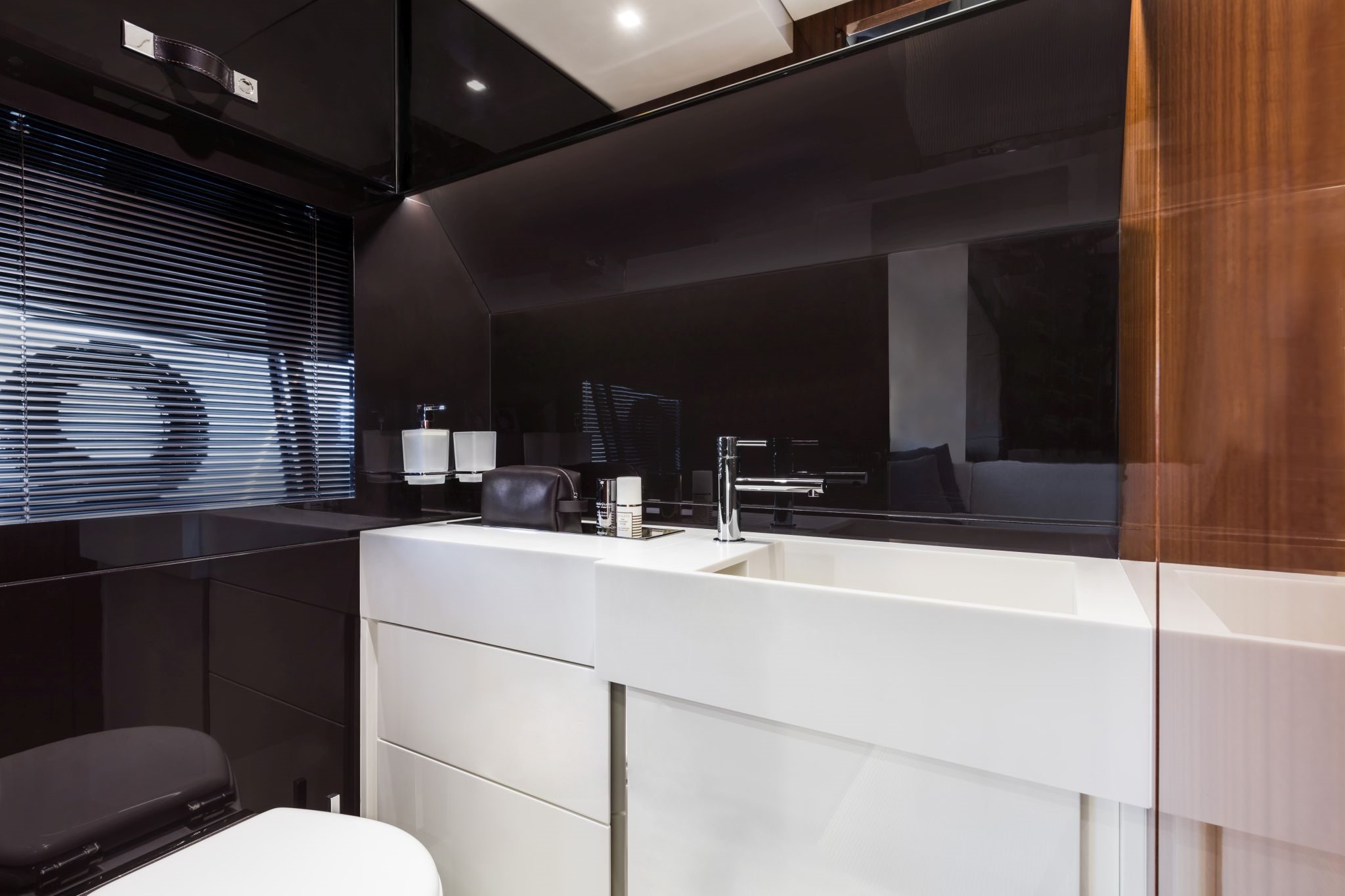

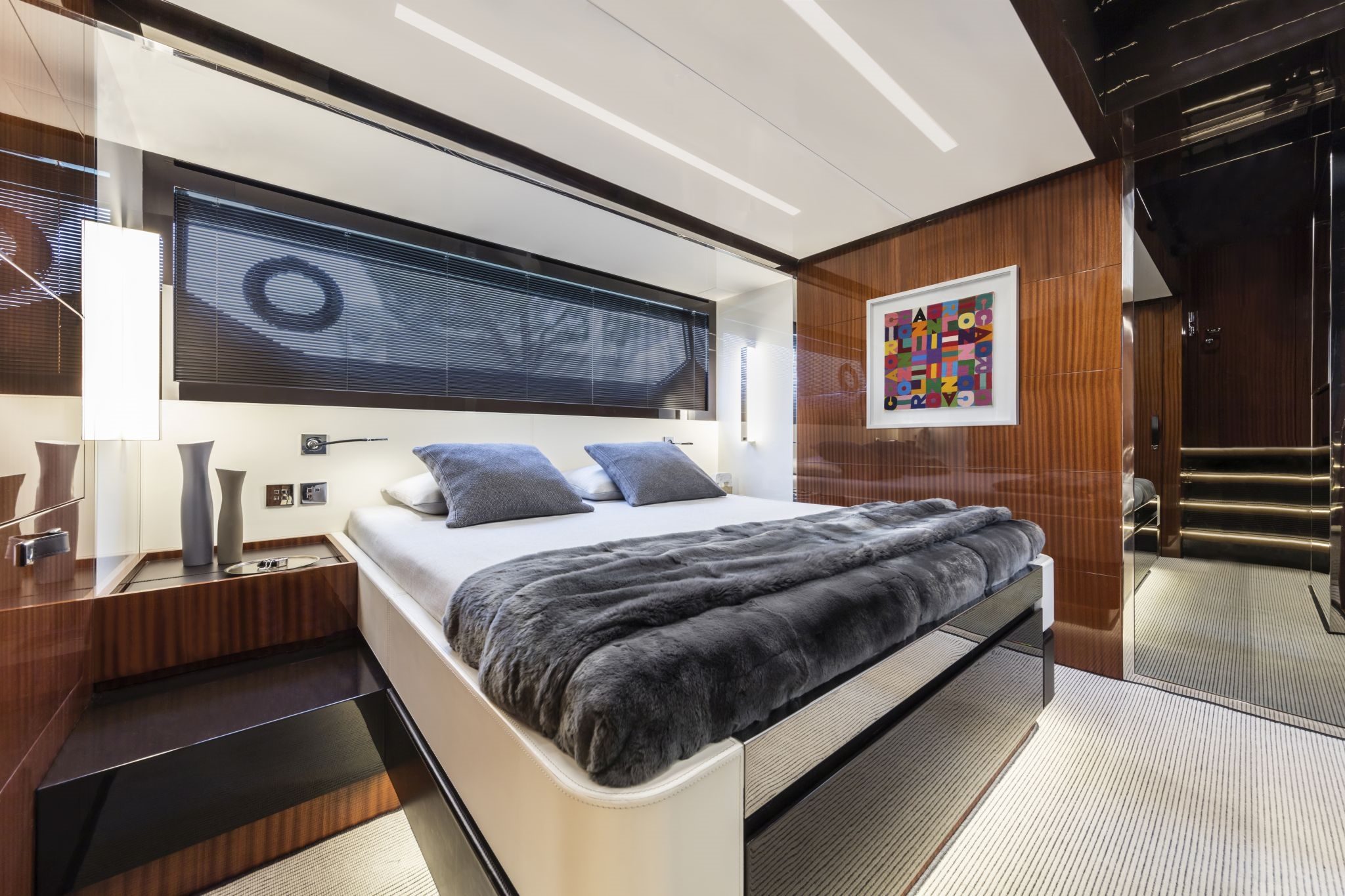

LOWER DECK

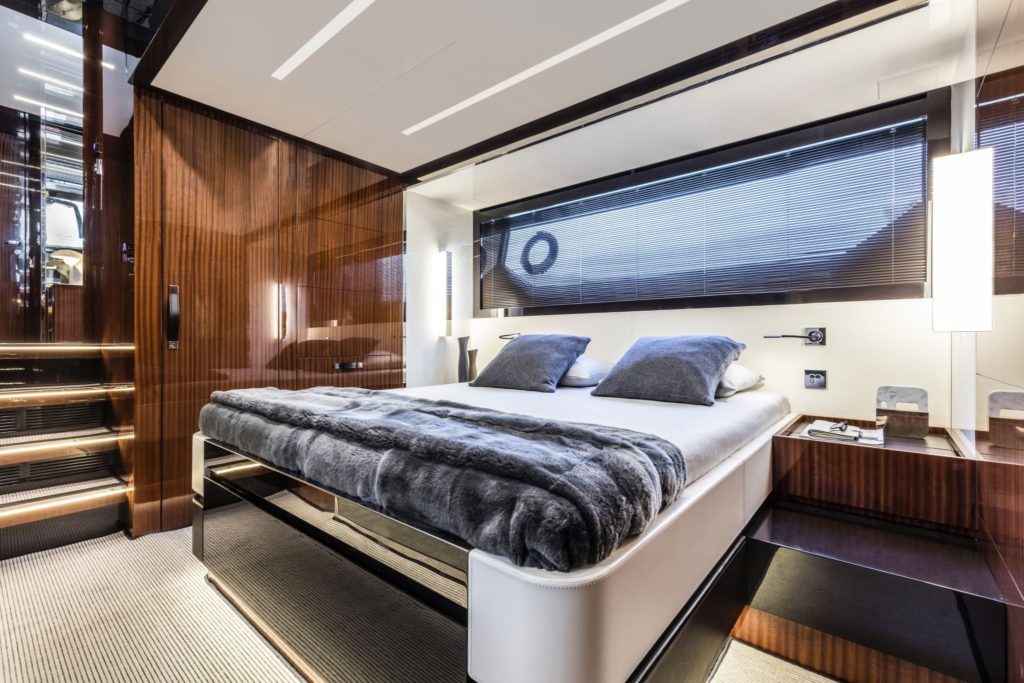

LOWER DECK

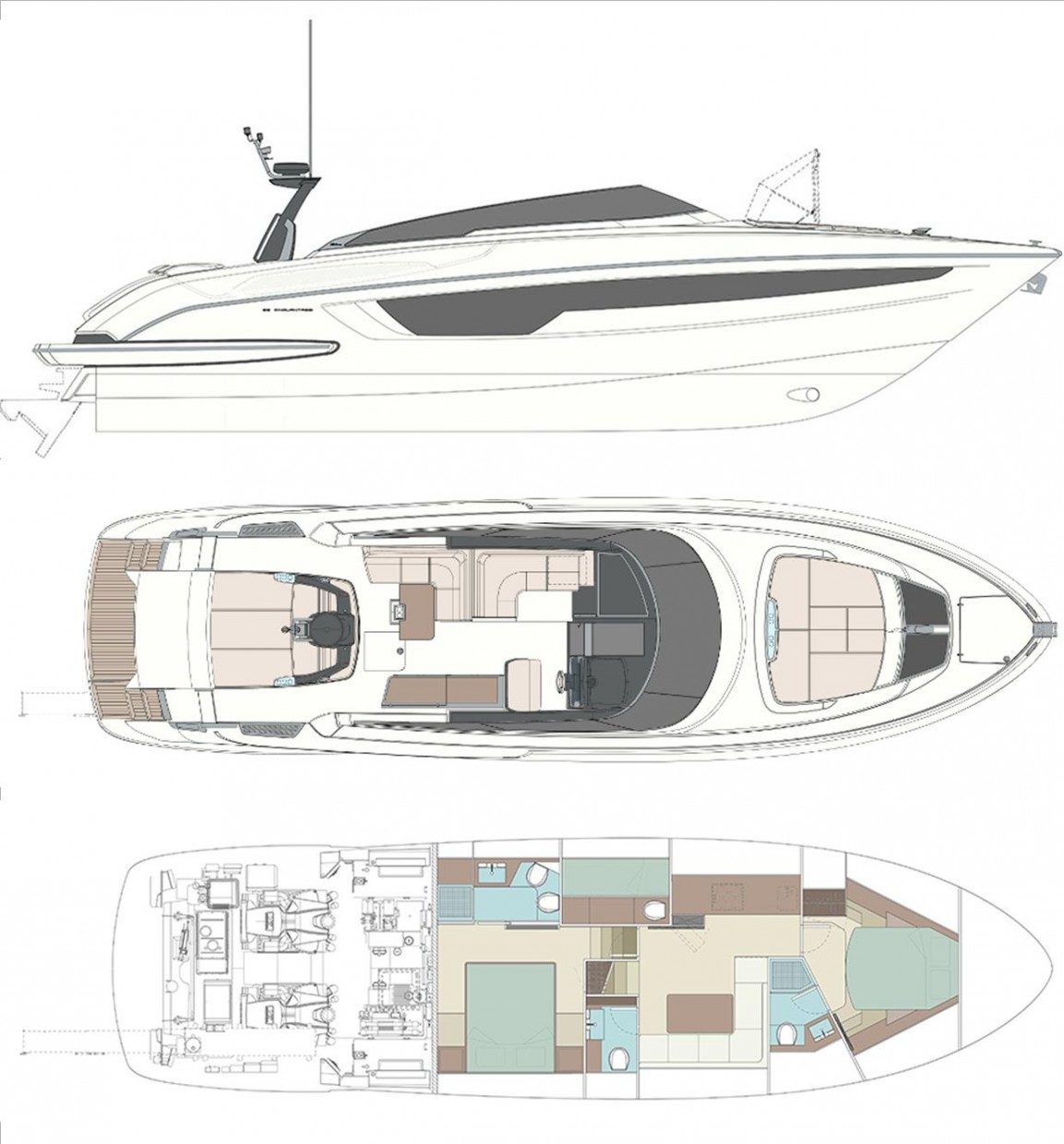

LAYOUT
TECH SPECS
ENGINES
MAN V8–1000
MAN V8–1200
SPEED
MAXIMUM SPEED | 36 kn |
---|---|
CRUISING SPEED | 32 kn |
RANGE
LONG RANGE CRUISING SPEED AT 11,5 KNOTS | 260 nautical miles |
---|
MAIN SIZES
OVERALL LENGTH | 17.27 m |
---|---|
HULL LENGTH | 17.16 m |
WATERLINE LENGTH | 13.99 m |
BEAM | 4.74 m |
DEPTH UNDER PROPELLERS | 1.45 m |
DISPLACEMENT UNLADEN | 23 t (tonne) |
DISPLACEMENT LADEN | 27 t (tonne) |
MAXIMUM NUMBER OF PERSONS ON BOARD | 10 |
DESIGN CATEGORY CE 2003/44 | A |
CERTIFICATION MODULES | B + F + Aa (sound emission) RINA S.p.A. |
CABINS | 2 |
CREW CABINS WITH HEAD | 1 |
HEADS | 2 + 1 |
TECHNICAL DATA
Last update: 3/14/2018 | RIVA 56` RIVALE | |
LOA | 17,27 [m] | |
LH | 17,16 [m] | |
LWL | 13,99 [m] | |
Max beam | 4,74 [m] | |
Draft | 1,45 [m] | |
Unladen displacement | 27.000 [kg] | |
Laden displacement | 31.000 [kg] | |
Fuel | 2.300 [l] | |
Water | 530 [l] | |
People on board | 10 | |
Engine | MAN V8-1000 | MAN V8-1200 |
Engine HP | 1000 | 1200 |
Transmission | V-drive | |
Max speed | 34 [kn] | 38 [kn] |
Cruise speed | 28 [kn] | 32 [kn] |
Range | 210 [nm] | 200 [nm] |
Cabins | 2 | |
Crew cabins | 1 std | |
Bathrooms | 3 | |
Bathrooms in crew quarter | 1 |
PERFORMANCE SPECIFICATIONS
OVERLOADING THE YACHT BY | 1.3 t (tonne) |
---|---|
TOP SPEED DECREASES OF | 1 kn |
